Weldbend

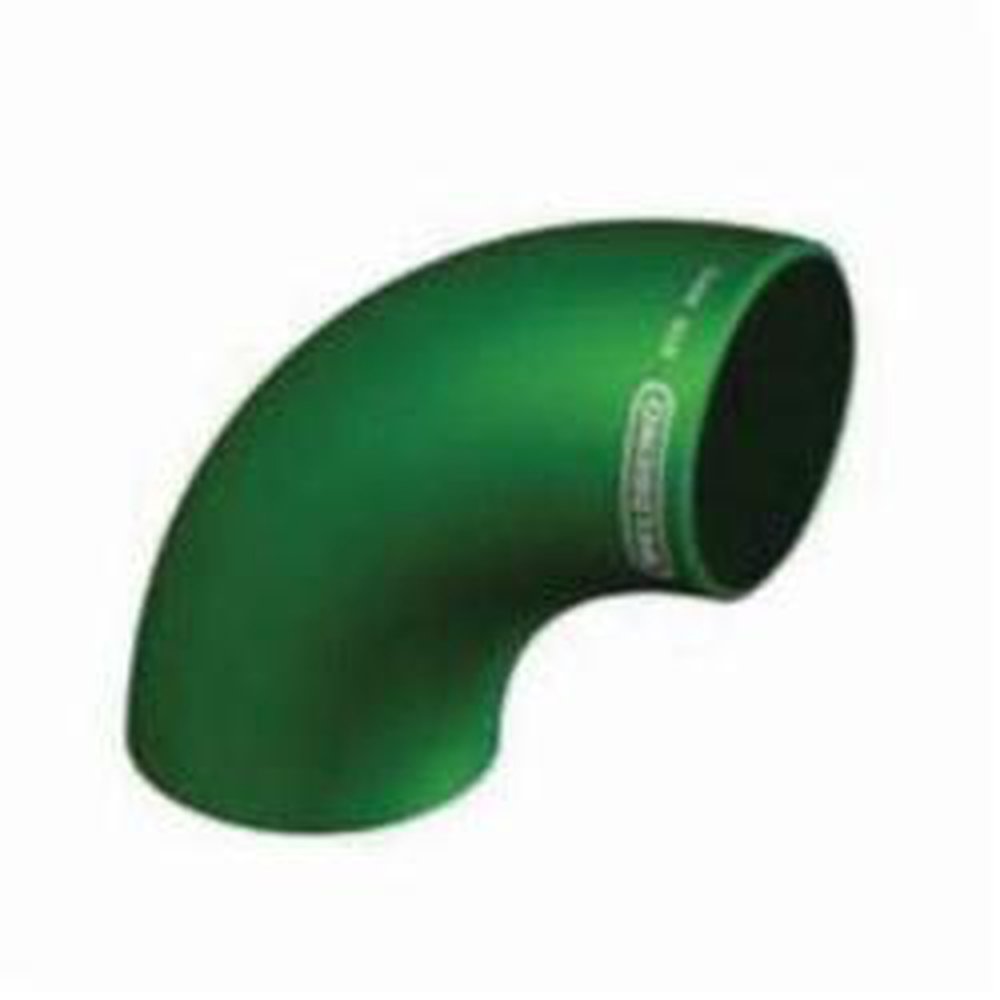

(D) 2-1/2 STD LR 90 WELD ELBOW

Mouse over image to zoom, click to enlarge

Description: Weldbend® Pipe Elbow, Long Radius, 90 deg Elbow Fitting/Connector, 2-1/2 in Nominal, Butt Welded End Style, SCH 40/STD Schedule, 0.203 in Thickness, 2583 lb Pressure, Carbon Steel, -20 to 650 deg F, 2.469 in ID x 2.88 in OD Dimensions

Manufacturer PN: 010-022-000

Forberg Smith PN: 3028987

Invoice Description:

(D) 2-1/2 STD LR 90 WELD ELBOW

UNSPSC: 40142300


How Can We Make This Page Better?

Weldbend® 010-022-000 Long Radius Pipe Elbow, Carbon Steel, 2-1/2 in Nominal, SCH 40/STD, Butt Welded End Style

Price:  $25.05 / ea


Availability: 31 ea  i


Quantity  ea Add to Cart

Description

Weldbend® Pipe Elbow, Long Radius, 90 deg Elbow Fitting/Connector, 2-1/2 in Nominal, Butt Welded End Style, SCH 40/STD Schedule, 0.203 in Thickness, 2583 lb Pressure, Carbon Steel, -20 to 650 deg F, 2.469 in ID x 2.88 in OD Dimensions

Specifications

 Brand Name Weldbend®
 Dimensions 2.469 in ID x 2.88 in OD
 End Style Butt Welded
 Fitting Type 90 deg Elbow
 Manufacturer Part Number 010-022-000
 Material Carbon Steel
 Nominal Size 2-1/2 in
 Pressure Rating 2583 lb
 Schedule Rating SCH 40/STD
 Standards/Approvals ASTM A234 Grade WPB|ASME B16.9
 Temperature Rating -20 to 650 deg F
 Type Long Radius
