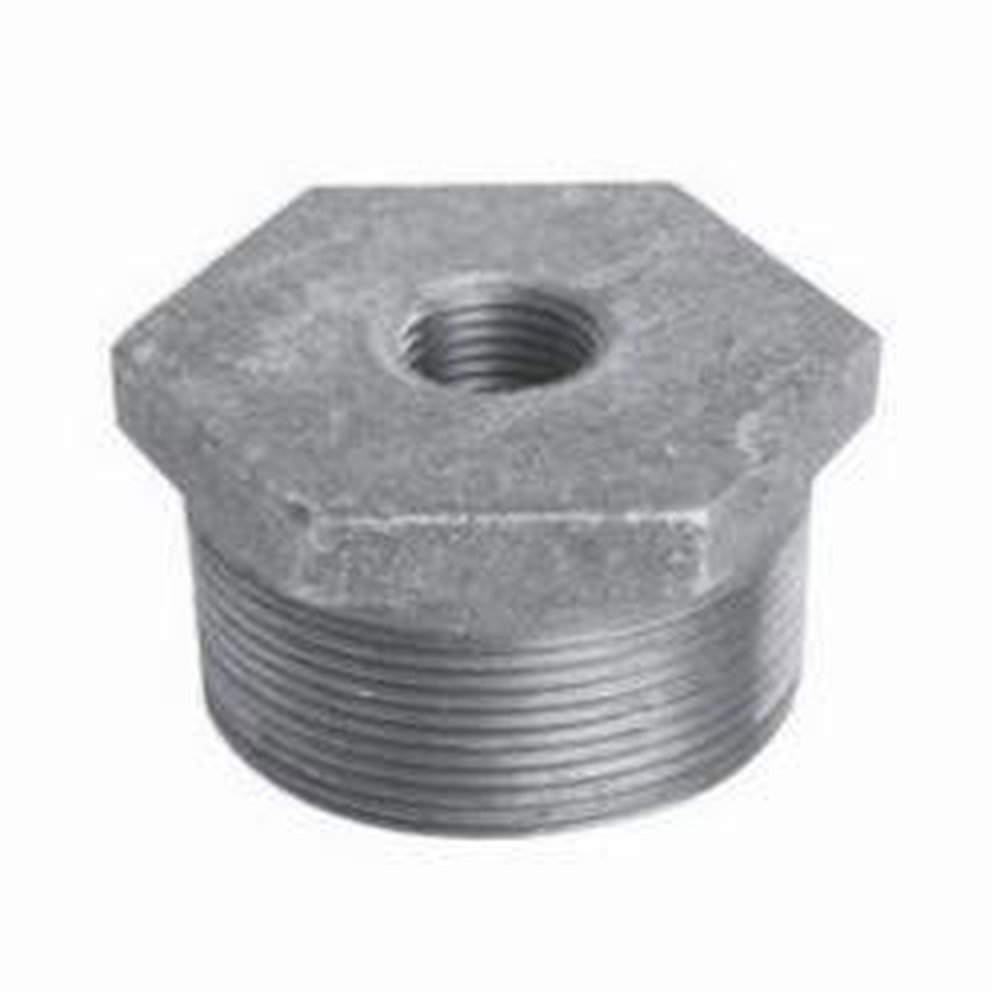

(D) 2-1/2X2 BLK HEX BUSHING MALL

Mouse over image to zoom, click to enlarge

Description: Ward Mfg Pipe Bushing, Hex Head, Fitting/Connector Type: Bushing, 2-1/2 x 2 in Nominal, MNPT x FNPT, 0.37 in Thickness, 2.98 in Hex, SCH 40/STD, 150 lb, 300 psi, Malleable Iron, Black, -20 to 150 deg F, Domestic

Manufacturer PN: 66246701120

UPC:  66246701120

Forberg Smith PN: 3021634

Invoice Description:

(D) 2-1/2X2 BLK HEX BUSHING MALL

UNSPSC: 40142300


SPEC SHEET

How Can We Make This Page Better?

Ward Mfg 0318907961 Hex Head Pipe Bushing, 2-1/2 x 2 in Nominal, MNPT x FNPT End Style, 150 lb, Malleable Iron, Black, Domestic

Log In for Pricing and Availability




Description

Extra strong, expertly cast iron is at the heart of Ward Fittings quality. From laboratory to foundry, raw materials undergo strict metallurgical and processing controls, chemical analysis and inspection to produce closely grained, high-tensile, non-porous iron. Generations of expertise and rigorous quality control results in durable yet precise cast and malleable iron fittings and components that meet or exceed national and industry standards - and the needs of contractors around the world who believe that down to the last detail, quality counts.
Ward Mfg Pipe Bushing, Hex Head, Fitting/Connector Type: Bushing, 2-1/2 x 2 in Nominal, MNPT x FNPT, 0.37 in Thickness, 2.98 in Hex, SCH 40/STD, 150 lb, 300 psi, Malleable Iron, Black, -20 to 150 deg F, Domestic

Specifications

 Brand Name Ward Mfg
 Domestic or Import Domestic
 End Style MNPT x FNPT
 Finish Black
 Fitting Type Bushing
 Hex Size 2.98 in
 Manufacturer Part Number 0318907961
 Material Malleable Iron
 Nominal Size 2-1/2 x 2 in
 PART NUMBER KEYWORDS 0318907961 ; 2DX2.BB ; 2DX2BB ; 662467011205 ; 66246701120
 Pressure Rating 300 psi
 Schedule Rating SCH 40/STD
 Standards/Approvals ANSI/ASME B16.14/B1.20.1|ASTM A153/197|FM Approved|NSF 61-G|UL/ULC Listed|WW P471
 Temperature Rating -20 to 150 deg F
 Type Hex Head

Features

▪ Wide range of products for sprinkler systems, drainage systems other installations, including fittings connectors, unions, plugs and bushings, clamps and more
▪ Accurate form, length and straightness on threads for easy engagement
▪ Chamfered openings for fast, easy engagement and assembly
▪ Precision machining
▪ Rust-Resistant coating
▪ 2.98 in head width
▪ 0.37 in head height
▪ 3/4 in internal x 1.07 in external thread length
▪ Outside head
