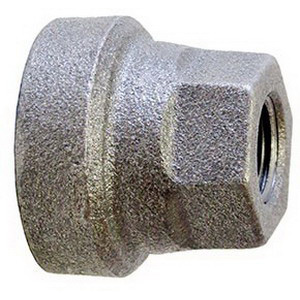

(D) 2X1-1/2 CI RED COUPLING

Mouse over image to zoom, click to enlarge

  • (D) 2X1-1/2 CI RED COUPLING
  • (D) 2X1-1/2 CI RED COUPLING
  • (D) 2X1-1/2 CI RED COUPLING

Description: Ward Mfg, 2X1D.BR, Concentric Reducing Coupling, Fitting/Connector: Concentric Reducer, 2 x 1-1/2 in Nominal, FNPT End Style, 2.32 in Length, SCH 40/STD Schedule, 125 lb Pressure Class, 175 psi Pressure, Cast Iron, Black, -20 to 150 deg F, Domestic;Anvil®, 0300150604, Reducer, Series: FIG 367, Fitting/Connector: Concentric Reducer, 2 x 1-1/2 in Nominal, FNPT End Style, 2-3/16 in Length, SCH 40/STD Schedule, 125 lb Pressure Class, 175 psi Pressure, Cast Iron, Black, -20 to 150 deg F, Domestic

Manufacturer PN: 0300150604

UPC:  66246730300

Forberg Smith PN: 3031352

Invoice Description:

(D) 2X1-1/2 CI RED COUPLING


SPEC SHEET

How Can We Make This Page Better?

Ward Mfg 2X1D.BR Concentric Reducing Coupling, Concentric Reducer, 2 x 1-1/2 in Nominal, FNPT End Style, 125 lb, Cast Iron, Black, Domestic;Anvil® 0300150604 FIG 367 Reducer, Concentric Reducer, 2 x 1-1/2 in Nominal, FNPT End Style, 125 lb, Cast Iron, Black, Domestic

Log In for Pricing and Availability




Description

Extra strong, expertly cast iron is at the heart of Ward Fittings quality. From laboratory to foundry, raw materials undergo strict metallurgical and processing controls, chemical analysis and inspection to produce closely grained, high-tensile, non-porous iron. Generations of expertise and rigorous quality control results in durable yet precise cast and malleable iron fittings and components that meet or exceed national and industry standards - and the needs of contractors around the world who believe that down to the last detail, quality counts.;Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14). Dimensions also conform to Federal Specifications, WW-P-501 (except plugs and bushings WW-P-471). Cast iron threaded fittings are available in both black and galvanized.
Ward Mfg, 2X1D.BR, Concentric Reducing Coupling, Fitting/Connector: Concentric Reducer, 2 x 1-1/2 in Nominal, FNPT End Style, 2.32 in Length, SCH 40/STD Schedule, 125 lb Pressure Class, 175 psi Pressure, Cast Iron, Black, -20 to 150 deg F, Domestic;Anvil®, 0300150604, Reducer, Series: FIG 367, Fitting/Connector: Concentric Reducer, 2 x 1-1/2 in Nominal, FNPT End Style, 2-3/16 in Length, SCH 40/STD Schedule, 125 lb Pressure Class, 175 psi Pressure, Cast Iron, Black, -20 to 150 deg F, Domestic

Specifications

 Brand Name Ward Mfg;Anvil®
 Domestic or Import Domestic
 End Style FNPT
 Finish Black
 Fitting Type Concentric Reducer
 Length 2.32 in;2-3/16 in
 Manufacturer Part Number 0300150604
 Material Cast Iron
 Nominal Size 2 x 1-1/2 in
 PART NUMBER KEYWORDS 2X1D.BR ; 2X1DBR ; 662467303003 ; 66246730300;0300150604 ; 367-2X1-1/2 ; 3672X112 ; 690291016011 ; 69029101601
 Pressure Rating 175 psi
 Schedule Rating SCH 40/STD
 Series FIG 367
 Standards/Approvals ANSI/ASME B16.14/B1.20.1|FM Approved|NSF 61-G|UL/ULC Listed;ASME B16.4/B1.20.1|ASTM A126|cULus Listed|FM Approved
 Temperature Rating -20 to 150 deg F

Features

▪ Wide range of products for sprinkler systems, drainage systems other installations, including fittings connectors, unions, plugs & bushings, clamps and more;Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14).
▪ Accurate form, length and straightness on threads for easy engagement
▪ Chamfered openings for fast, easy engagement and assembly
▪ Precision machining
▪ Rust-Resistant coating
▪ 3/4 x 0.7 in thread length
▪ 0.4 x 0.44 in take out
