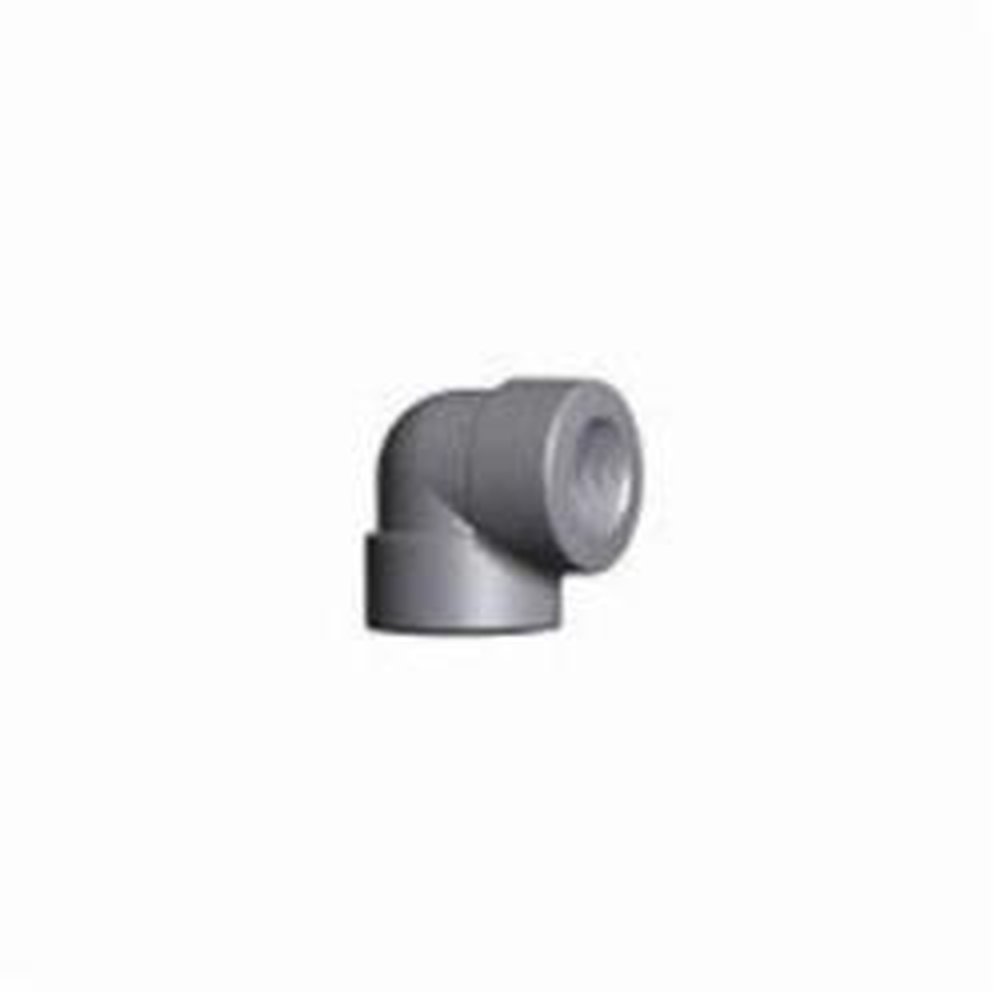

(D) 3/4 3M FS THD STREET 90 ELBOW

Mouse over image to zoom, click to enlarge

Description: Capitol Street Elbow, Long Radius, 90 deg Elbow Fitting/Connector, 3/4 in Nominal, Thread End Style, 3000 lb Pressure Class, 300 psi Pressure, Forged Method of Manufacture, Carbon Steel, 360 deg F, 1-3/4 in OD Dimensions

Manufacturer PN: 12200407

Forberg Smith PN: 3040504

Invoice Description:

(D) 3/4 3M FS THD STREET 90 ELBOW


How Can We Make This Page Better?

Capitol 12200407 Long Radius Street Elbow, 3/4 in Nominal, Thread End Style, 3000 lb, Carbon Steel

Log In for Pricing and Availability




Description

Capitol Street Elbow, Long Radius, 90 deg Elbow Fitting/Connector, 3/4 in Nominal, Thread End Style, 3000 lb Pressure Class, 300 psi Pressure, Forged Method of Manufacture, Carbon Steel, 360 deg F, 1-3/4 in OD Dimensions

Specifications

 Brand Name Capitol
 Construction Forged
 Dimensions 1-3/4 in OD
 End Style Thread
 Fitting Type 90 deg Elbow
 Manufacturer Part Number 12200407
 Material Carbon Steel
 Nominal Size 3/4 in
 PART NUMBER KEYWORDS 12200407
 Pressure Rating 300 psi
 Standards/Approvals ASME B16.11/B1.20.1|ASTM A105|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause birth defects. For more information go to www.P65Warnings.ca.gov
 Temperature Rating 360 deg F
 Type Long Radius
