ASC Engineered Solutions

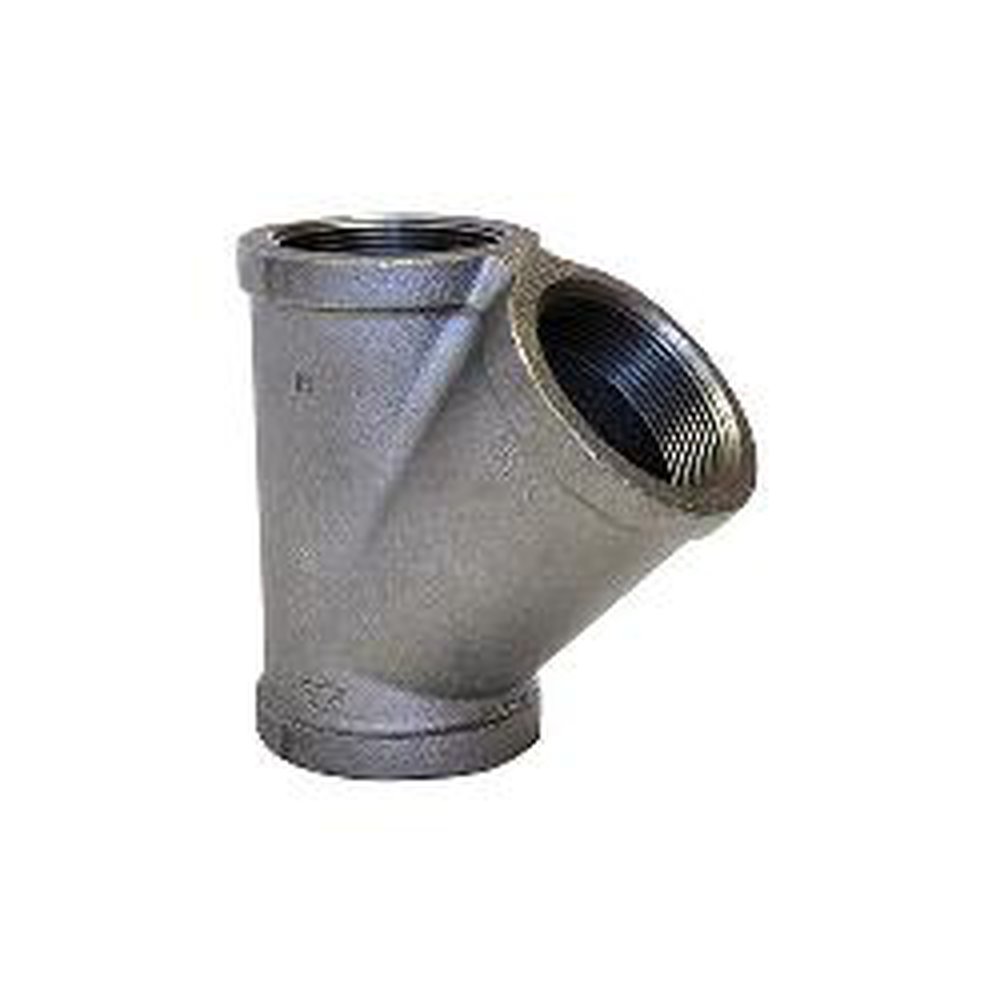

(D) 3/4 GALV MALL Y-BRANCH

Mouse over image to zoom, click to enlarge

Description: Anvil®, 0311066807, Wye, Series: FIG 1108, Fitting/Connector: Connector, 3/4 in Nominal, FNPT End Style, 2-13/16 in Length, SCH 40/STD Schedule, 150 lb Pressure Class, 300 psi Pressure, Malleable Iron, Galvanized, -20 to 150 deg F, Domestic

Manufacturer PN: (D)

UPC:  69029103049

Forberg Smith PN: 3025487

Invoice Description:

(D) 3/4 GALV MALL Y-BRANCH


SPEC SHEET

How Can We Make This Page Better?

Anvil® 0311066807 FIG 1108 Wye, Connector, 3/4 in Nominal, FNPT End Style, 150 lb, Malleable Iron, Galvanized, Domestic

Log In for Pricing and Availability




Description

Anvil®, 0311066807, Wye, Series: FIG 1108, Fitting/Connector: Connector, 3/4 in Nominal, FNPT End Style, 2-13/16 in Length, SCH 40/STD Schedule, 150 lb Pressure Class, 300 psi Pressure, Malleable Iron, Galvanized, -20 to 150 deg F, Domestic

Specifications

 Brand Name Anvil®
 Domestic or Import Domestic
 End Style FNPT
 Finish Galvanized
 Fitting Type Connector
 Length 2-13/16 in
 Manufacturer Part Number 0311066807
 Material Malleable Iron
 Nominal Size 3/4 in
 PART NUMBER KEYWORDS 0311066807 ; IMG1744 ; 690291030499 ; 69029103049
 Pressure Rating 300 psi
 Schedule Rating SCH 40/STD
 Series FIG 1108
 Standards/Approvals ANSI/NSF 61-9/372|PROP65: This product can expose you to chemicals including Lead, Nickel (Metallic) and Di(2-ethylhexyl)phthalate (DEHP), which are known to the State of California to cause cancer, Lead and Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
 Temperature Rating -20 to 150 deg F

Features

▪ Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.

Resources

 Product Data Sheet
