Ward Manufacturing;ASC Engineered Solutions

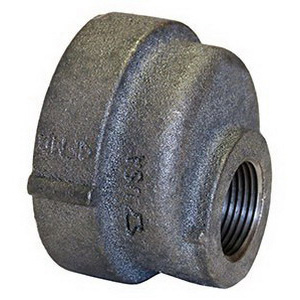

(D) 3/4X1/2 CI ECC RED COUPLING

Mouse over image to zoom, click to enlarge

  • (D) 3/4X1/2 CI ECC RED COUPLING
  • (D) 3/4X1/2 CI ECC RED COUPLING
  • (D) 3/4X1/2 CI ECC RED COUPLING

Description: Ward Mfg Eccentric Reducing Coupling, Reducing Coupling Fitting/Connector, 3/4 x 1/2 in Nominal, NPS End Style, 1.52 in Length, 125 lb Pressure Class, Cast Iron, Black, Domestic;Anvil® Eccentric Reducer, Series: FIG 368, Fitting/Connector Type: Reducer, 3/4 x 1/2 in Nominal, FNPT, 1-1/2 in Length, SCH 40/STD, 125 lb, 175 psi, Cast Iron, Black Oxide, -20 to 150 deg F, Domestic

Manufacturer PN: 0300152469

UPC:  66246742594

Forberg Smith PN: 3031099

Invoice Description:

(D) 3/4X1/2 CI ECC RED COUPLING

UNSPSC: 40142300


SPEC SHEET

How Can We Make This Page Better?

Ward Mfg EXD.BER Eccentric Reducing Coupling, 3/4 x 1/2 in Nominal, NPS End Style, 125 lb, Cast Iron, Black, Domestic;Anvil® 0300152469 FIG 368 Eccentric Reducer, 3/4 x 1/2 in Nominal, FNPT End Style, 125 lb, Cast Iron, Black Oxide, Domestic

Price:  $41.08 / ea


Availability: 24 ea  i


Quantity  ea Add to Cart

Description

Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14). Dimensions also conform to Federal Specifications, WW-P-501 (except plugs and bushings WW-P 471). Cast iron threaded fittings are available in both black and galvanized.
Ward Mfg Eccentric Reducing Coupling, Reducing Coupling Fitting/Connector, 3/4 x 1/2 in Nominal, NPS End Style, 1.52 in Length, 125 lb Pressure Class, Cast Iron, Black, Domestic;Anvil® Eccentric Reducer, Series: FIG 368, Fitting/Connector Type: Reducer, 3/4 x 1/2 in Nominal, FNPT, 1-1/2 in Length, SCH 40/STD, 125 lb, 175 psi, Cast Iron, Black Oxide, -20 to 150 deg F, Domestic

Specifications

 Brand Name Ward Mfg;Anvil®
 Domestic or Import Domestic
 End Style NPS;FNPT
 Finish Black;Black Oxide
 Fitting Type Reducing Coupling;Reducer
 Length 1.52 in;1/1/2002 in
 Manufacturer Part Number EXD.BER;0300152469
 Material Cast Iron
 Nominal Size 3/4 x 1/2 in
 Pressure Rating 175 psi
 Schedule Rating SCH 40/STD
 Series FIG 368
 Standards/Approvals AB-1953|ASME B16.4 Dimension|ASME B1.20.1 Thread|ASTM A126 Cast Iron|Federal Spec WW-P-501;ASME B16.4/B1.20.1|ASTM A126|cULus Listed|FM Approved
 Temperature Rating -20 to 150 deg F

Features

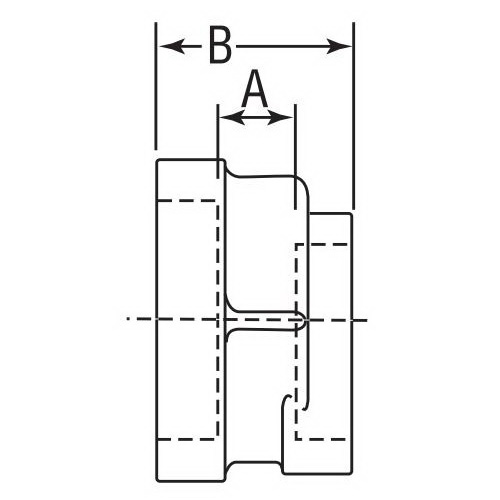

▪ 0.58 in L thread (large end), 0.43 in L thread (small end);Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14).
▪ 1.63 in OD (large end), 1.34 in OD (small end)
▪ 0.21 x 0.23 in take out

Resources

 Product Data Sheet
