Ward Manufacturing;ASC Engineered Solutions

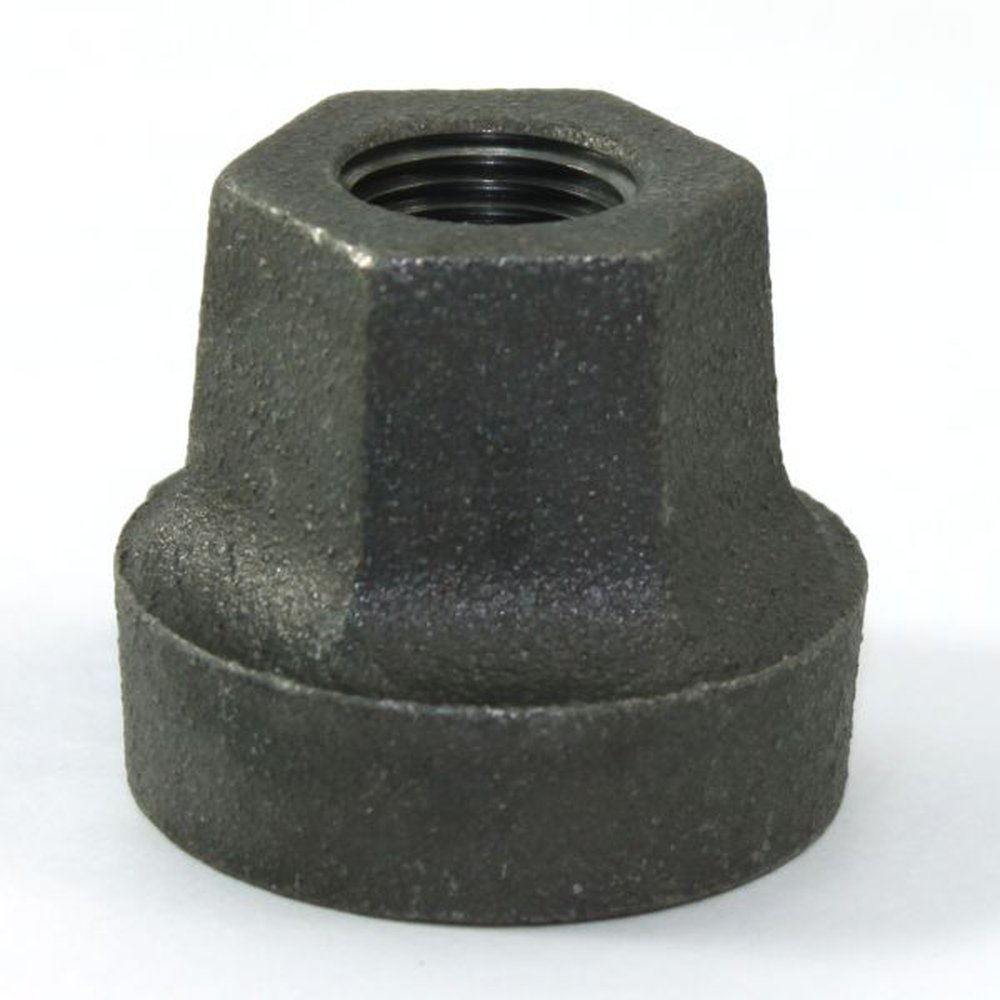

(D) 3/4X1/2 CI RED COUPLING

Mouse over image to zoom, click to enlarge

  • (D) 3/4X1/2 CI RED COUPLING
  • (D) 3/4X1/2 CI RED COUPLING

Description: Ward Mfg Concentric Reducer, Lead Free, Fitting/Connector Type: Reducer, 3/4 x 1/2 in Nominal, NPS, 1-1/2 in Length, 125 lb, Cast Iron, Black, Domestic;Anvil® Concentric Reducer, Series: FIG 367, Fitting/Connector Type: Reducer, 3/4 x 1/2 in Nominal, FNPT, 1-9/16 in Length, SCH 40/STD, 125 lb, 175 psi, Cast Iron, Black Oxide, -20 to 150 deg F, Domestic

Manufacturer PN: 0300148467

UPC:  66246742592

Forberg Smith PN: 3031245

Invoice Description:

(D) 3/4X1/2 CI RED COUPLING

UNSPSC: 40142300


SPEC SHEET

How Can We Make This Page Better?

Ward Mfg EXD.BR Concentric Reducer, 3/4 x 1/2 in, NPS, 125 lb, Cast Iron, Black, Domestic;Anvil® 0300148467 FIG 367 Concentric Reducer, 3/4 x 1/2 in Nominal, FNPT End Style, 125 lb, Cast Iron, Black Oxide, Domestic

Price:  $19.53 / ea


Availability: 5 ea  i


Quantity  ea Add to Cart

Description

Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14). Dimensions also conform to Federal Specifications, WW-P-501 (except plugs and bushings WW-P-471). Cast iron threaded fittings are available in both black and galvanized.
Ward Mfg Concentric Reducer, Lead Free, Fitting/Connector Type: Reducer, 3/4 x 1/2 in Nominal, NPS, 1-1/2 in Length, 125 lb, Cast Iron, Black, Domestic;Anvil® Concentric Reducer, Series: FIG 367, Fitting/Connector Type: Reducer, 3/4 x 1/2 in Nominal, FNPT, 1-9/16 in Length, SCH 40/STD, 125 lb, 175 psi, Cast Iron, Black Oxide, -20 to 150 deg F, Domestic

Specifications

 Brand Name Ward Mfg;Anvil®
 Domestic or Import Domestic
 End Style NPS;FNPT
 Finish Black;Black Oxide
 Fitting Type Reducer
 Length 1/1/2002 in;1/9/2016 in
 Manufacturer Part Number EXD.BR;0300148467
 Material Cast Iron
 Nominal Size 3/4 x 1/2 in
 Pressure Rating 175 psi
 Schedule Rating SCH 40/STD
 Series FIG 367
 Standards/Approvals AB-1953|ASME B16.4 Dimension|ASME B1.20.1 Thread|ASTM A126 Cast Iron|Federal Spec WW-P-501;ASME B16.4/B1.20.1|ASTM A126|cULus Listed|FM Approved
 Temperature Rating -20 to 150 deg F

Features

▪ 0.5 in L thread (large end), 0.43 in L thread (small end);Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14).
▪ 1.62 in OD (large end band), 1.31 in OD (small end band)
▪ 0.2 x 0.22 in take out
