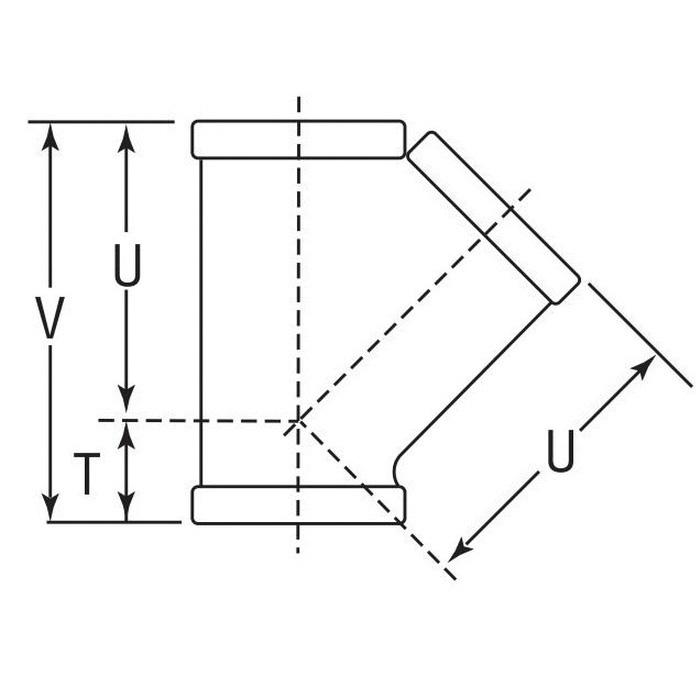

(D) 3 BLK MALL Y-BRANCH

Mouse over image to zoom, click to enlarge

  • (D) 3 BLK MALL Y-BRANCH
  • (D) 3 BLK MALL Y-BRANCH

Description: Anvil®, 0310068002, Wye, Standard, Series: FIG 1108, Fitting/Connector: Connector, 3 in Nominal, FNPT End Style, 7-1/4 in Length, SCH 40/STD Schedule, 150 lb Pressure Class, 300 psi Pressure, Malleable Iron, Black Oxide, -20 to 150 deg F, Domestic

Manufacturer PN: (D)

UPC:  69029102542

Forberg Smith PN: 3018947

Invoice Description:

(D) 3 BLK MALL Y-BRANCH


SPEC SHEET

How Can We Make This Page Better?

Anvil® 0310068002 FIG 1108 Standard Wye, Connector, 3 in Nominal, FNPT End Style, 150 lb, Malleable Iron, Black Oxide, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Anvil International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet Anvil's strict quality standards. All Anvil Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8 in (10 DN) and larger are 100% gas tested at a minimum of 100 PSI. (6.9 bar).
Anvil®, 0310068002, Wye, Standard, Series: FIG 1108, Fitting/Connector: Connector, 3 in Nominal, FNPT End Style, 7-1/4 in Length, SCH 40/STD Schedule, 150 lb Pressure Class, 300 psi Pressure, Malleable Iron, Black Oxide, -20 to 150 deg F, Domestic

Specifications

 Brand Name Anvil®
 Domestic or Import Domestic
 End Style FNPT
 Finish Black Oxide
 Fitting Type Connector
 Length 7-1/4 in
 Manufacturer Part Number 0310068002
 Material Malleable Iron
 Nominal Size 3 in
 PART NUMBER KEYWORDS 0310068002 ; 1108-3-BLK ; 11083BLK ; 690291025426 ; 69029102542
 Pressure Rating 300 psi
 Schedule Rating SCH 40/STD
 Series FIG 1108
 Standards/Approvals ASME B16.3|cULus Listed|FM Approved|NSF/ANSI 61
 Temperature Rating -20 to 150 deg F
 Type Standard

Features

▪ Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
