Weldbend

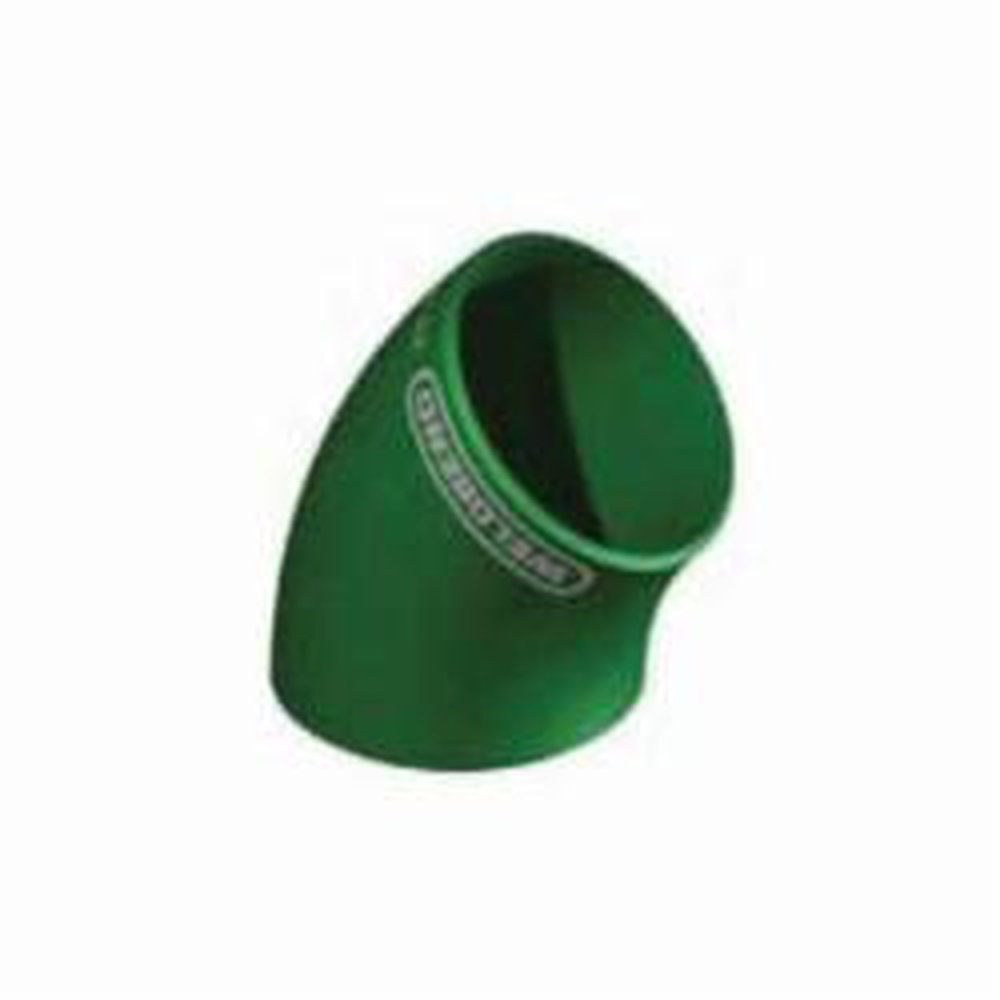

(D) 3 STD 45 WELD ELBOW

Mouse over image to zoom, click to enlarge

Description: Weldbend® Pipe Elbow, Long Radius, 45 deg Elbow Fitting/Connector, 3 in Nominal, Butt Welded End Style, SCH 40/STD Schedule, 0.21 in Thickness, 2240 lb Pressure, Carbon Steel, -20 to 650 deg F, 3.068 in ID x 3.5 in OD Dimensions

Manufacturer PN: 020-030-000

Forberg Smith PN: 3029115

Invoice Description:

(D) 3 STD 45 WELD ELBOW


How Can We Make This Page Better?

Weldbend® 020-030-000 Long Radius Pipe Elbow, Carbon Steel, 3 in Nominal, SCH 40/STD, Butt Welded End Style

Log In for Pricing and Availability




Description

Weldbend® Pipe Elbow, Long Radius, 45 deg Elbow Fitting/Connector, 3 in Nominal, Butt Welded End Style, SCH 40/STD Schedule, 0.21 in Thickness, 2240 lb Pressure, Carbon Steel, -20 to 650 deg F, 3.068 in ID x 3.5 in OD Dimensions

Specifications

 Brand Name Weldbend®
 Dimensions 3.068 in ID x 3.5 in OD
 End Style Butt Welded
 Fitting Type 45 deg Elbow
 Manufacturer Part Number 020-030-000
 Material Carbon Steel
 Nominal Size 3 in
 PART NUMBER KEYWORDS 020-030-000 ; 020030000
 Pressure Rating 2240 lb
 Schedule Rating SCH 40/STD
 Standards/Approvals ASTM A234 Grade WPB|ASME B16.9
 Temperature Rating -20 to 650 deg F
 Type Long Radius
