Dixon Valve & Coupling

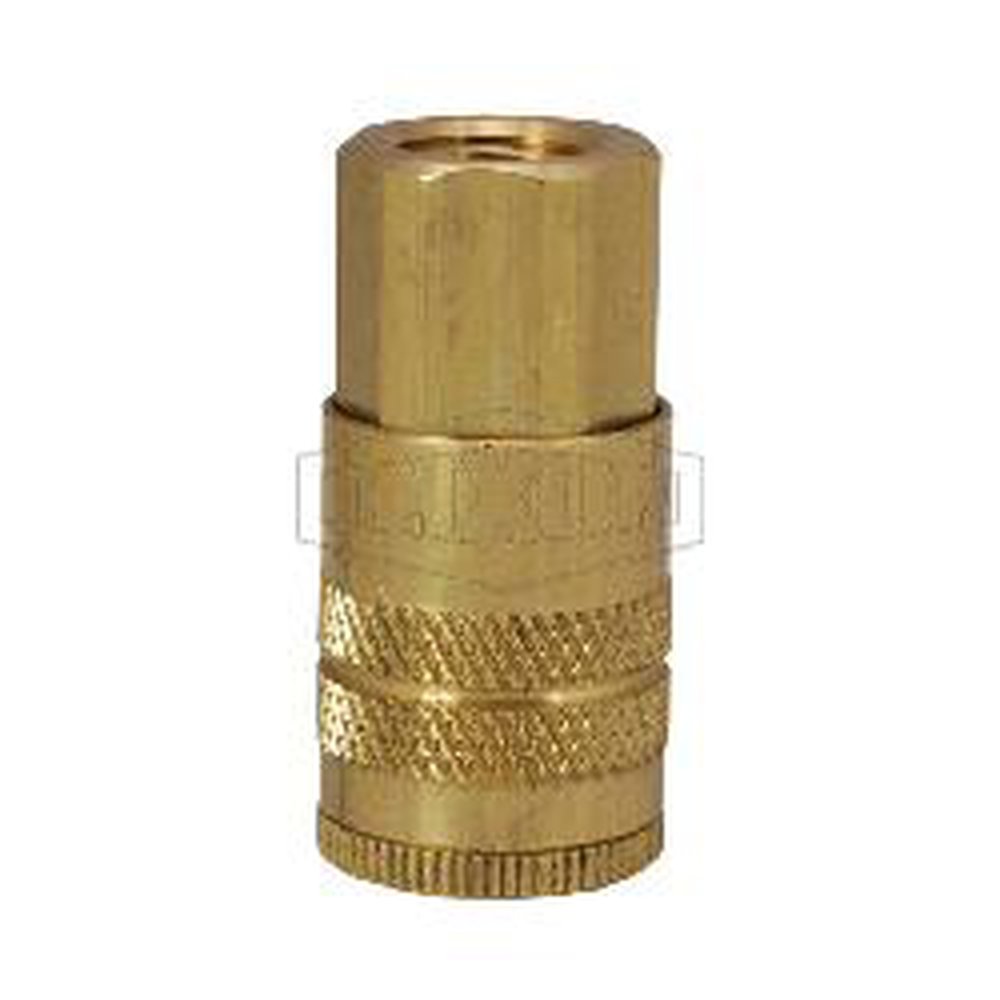

DC2021 DIXON 1/4 FEMALE COUPLER

Mouse over image to zoom, click to enlarge

Description: Dixon® Female Quick Connect Coupler, Air Chief Industrial, 1/8-27 Nominal, Quick Connect Coupler x NPTF End Style, 3/4 in Hex, 1.91 in Length, 300 psi Pressure, -40 to 250 deg F, Brass, 0.93 in OD, Domestic

Manufacturer PN: DC2021

UPC:  69746400761

Forberg Smith PN: 4584600

Invoice Description:

DC2021 DIXON 1/4 FEMALE COUPLER


SPEC SHEET

How Can We Make This Page Better?

Dixon® DC2021 Air Chief Industrial Female Quick Connect Coupler, 1/8-27 Nominal, Quick Connect Coupler x NPTF, 300 psi Pressure, Brass, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Female Quick Connect Coupler, Air Chief Industrial, 1/8-27 Nominal, Quick Connect Coupler x NPTF End Style, 3/4 in Hex, 1.91 in Length, 300 psi Pressure, -40 to 250 deg F, Brass, 0.93 in OD, Domestic

Specifications

 Brand Name Dixon®
 Dimensions 0.93 in OD
 Domestic or Import Domestic
 End Style Quick Connect Coupler x NPTF
 Hex Size 3/4 in
 Length 1.91 in
 Manufacturer Part Number DC2021
 Material Brass
 Nominal Size 1/8-27
 PART NUMBER KEYWORDS DC2021 ; 2FF1-B ; 2FF1B
 Pressure Rating 300 psi
 Standards/Approvals A-A-59439|MIL-C-4109F
 Temperature Rating -40 to 250 deg F
 Type Air Chief Industrial

Features

▪ Semi-automatic- pull sleeve to connect
▪ Couplers shut-off when disconnected

Resources

 Catalog
 Catalog Page
 Product Data Sheet
