ASCO
1/4 8262H86 SS 2-WAY NC 24 VDC 160 PSI H2O CV 0.21 ASCO VALVE

Mouse over image to zoom, click to enlarge

Description: ASCO Series 8262 Solenoid Valve for General Service Applications. See Catalog Datasheet for more information.

Manufacturer PN: 22062

Forberg Smith PN: 3044296

Invoice Description:

1/4 8262H86 SS 2-WAY NC 24 VDC 160 PSI H2O CV 0.21 ASCO VALVE

UNSPSC: 40141600


SPEC SHEET

▸ See All in ASCO Solenoid Valves


How Can We Make This Page Better?

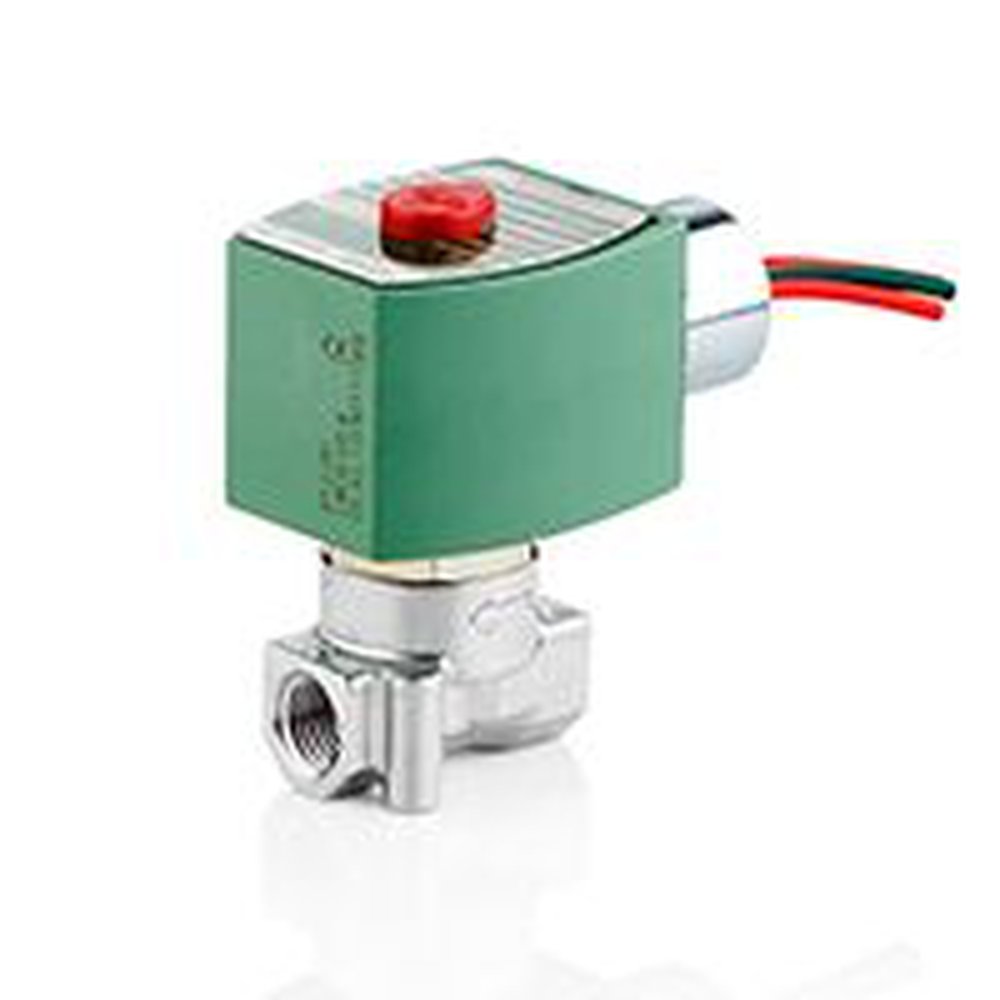

ASCO 8262H086 24DC 2-Way Stainless Steel 1/4 In Solenoid Valve, Normally Closed, General Service

Price:  $158.00 / ea

Note: Lead times are estimates only


Availability: 5-8 days


Quantity  ea Add to Cart

Description

ASCO Series 8262 Solenoid Valve for General Service Applications. See Catalog Datasheet for more information.

Specifications

 Ambient Temperature Range -13 to 104°F
 Body Design 2-Way
 Body Material Stainless Steel
 Brand Name ASCO
 Category Solenoids
 Coil Order Code 238310-006-D*
 Coil Watt Rating 10.6
 Connection Female NPT Threaded
 Construction Direct Acting
 Cv Flow Factor 0.21
 Electrical Connection 1/2" Conduit w/ 18" Leads
 Manufacturer ASCO
 Max Fluid Temperature 180°F
 Max ODP Air 235 PSI
 Max ODP Light Oil 160 PSI
 Max ODP Water 160 PSI
 Minimum OPD 0 PSI
 Operation Normally Closed
 Rebuild Kit Order Code 323587
 Seal Material NBR
 Series 8262
 Size 1/4 in
 Solenoid Enclosure Watertight
 Type Solenoid Valve
 Voltage 24 DC

Resources

 Product Data Sheet
