Dixon Valve & Coupling

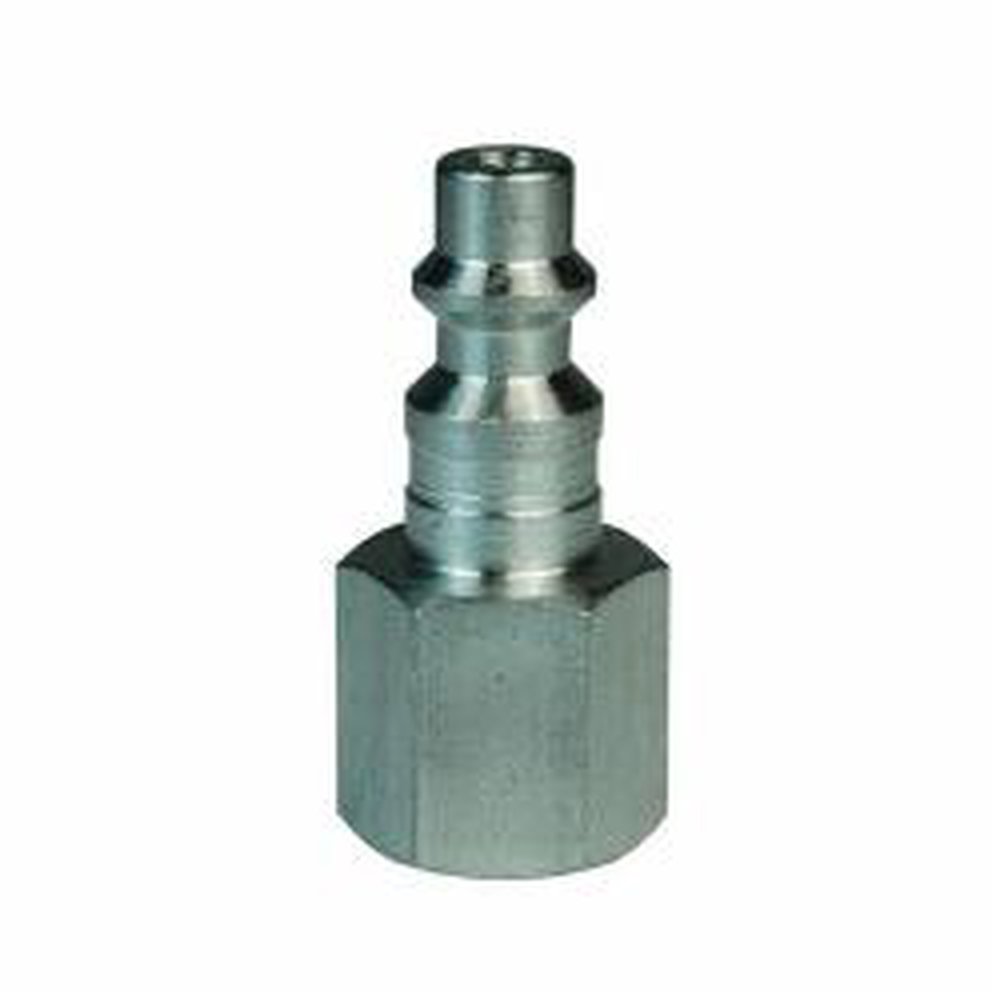

DCP18S 1/2" BODY X 1/2" FPT QUICK CONNECT PLUG SS

Mouse over image to zoom, click to enlarge

Description: Dixon® Quick Disconnect Pneumatic Nipple, Industrial Interchange, Series: DF Series, 1/2 in Nominal, Quick Disconnect Plug x FNPT End Style, 1 in Hex, 2.27 in Length, 500 psi Pressure, -40 to 250 deg F, 303 Stainless Steel, 1.16 in OD

Manufacturer PN: D4F4-S

UPC:  69746446208

Forberg Smith PN: 3068569

Invoice Description:

DCP18S 1/2" BODY X 1/2" FPT QUICK CONNECT PLUG SS


How Can We Make This Page Better?

Dixon® D4F4-S DF Series Industrial Interchange Quick Disconnect Pneumatic Nipple, 1/2 in Nominal, Quick Disconnect Plug x FNPT, 500 psi Pressure, 303 Stainless Steel

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Quick Disconnect Pneumatic Nipple, Industrial Interchange, Series: DF Series, 1/2 in Nominal, Quick Disconnect Plug x FNPT End Style, 1 in Hex, 2.27 in Length, 500 psi Pressure, -40 to 250 deg F, 303 Stainless Steel, 1.16 in OD

Specifications

 Application Industrial Fittings
 Brand Name Dixon®
 Dimensions 1.16 in OD
 End Style Quick Disconnect Plug x FNPT
 Hex Size 1 in
 Length 2.27 in
 Manufacturer Part Number D4F4-S
 Material 303 Stainless Steel
 Nominal Size 1/2 in
 PART NUMBER KEYWORDS D4F4-S ; D4F4S
 Pressure Rating 500 psi
 Series DF Series
 Temperature Rating -40 to 250 deg F
 Type Industrial Interchange

Features

▪ Machined components are manufactured using solid bar stock
