Emerson Electric

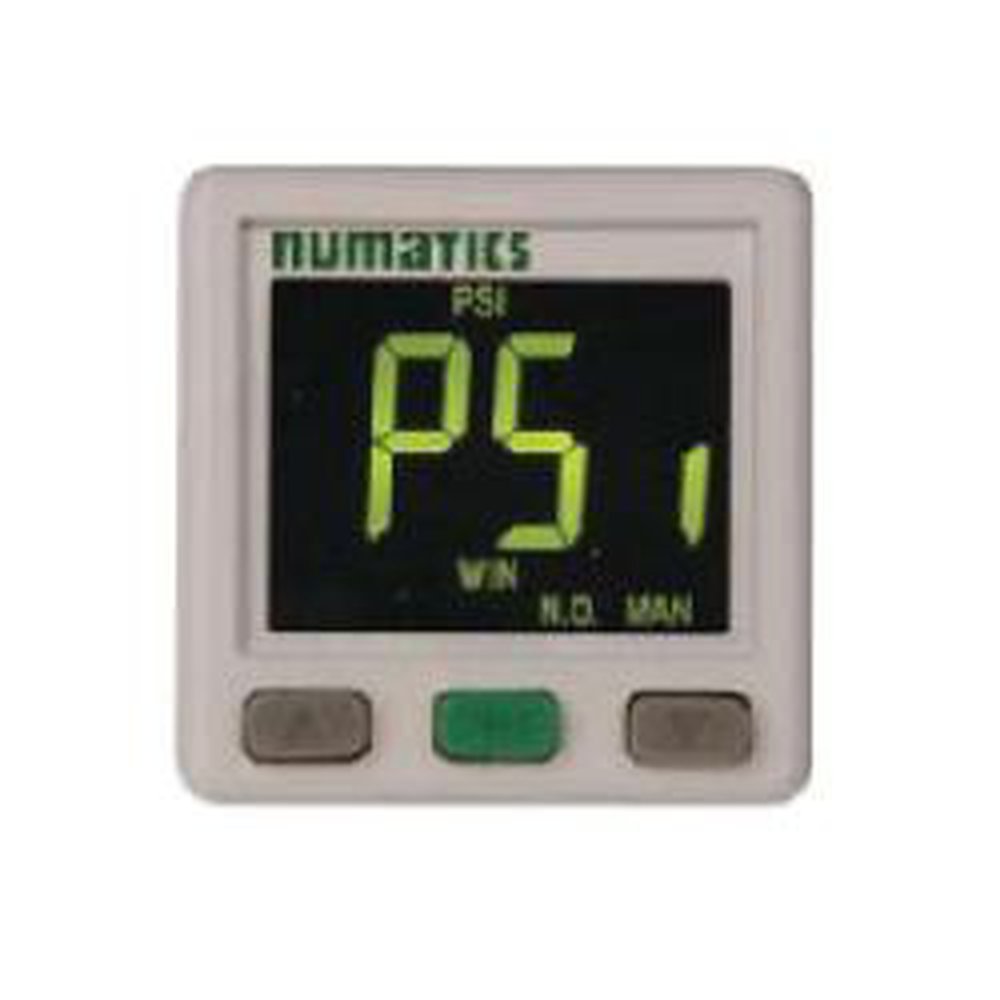

DPS280PNQ8 NUMATICS DIGITAL PRESSURE SENSOR

Mouse over image to zoom, click to enlarge

Description: Numatics® Digital Pressure Switch, Series: 280, 0 to 145 psig Measuring, 1/8 in MNPT x 10-32 UNF Female Connection, PNP Output, 45 mA at 12 to 24 V DC Electrical Rating, +/-0.2% FS +/- 1 Digit Accuracy, +/-0.2% FS +/- 1 Digit Repeatability, LCD Display, 0 to 122 deg F, 1.18 in H x 1.18 in W Dimensions

Manufacturer PN: DPS280PNQ8

Forberg Smith PN: 3485587

Invoice Description:

DPS280PNQ8 NUMATICS DIGITAL PRESSURE SENSOR

UNSPSC: 39120000


How Can We Make This Page Better?

Numatics® DPS280PNQ8 280 Digital Pressure Switch, 0 to 145 psig Measuring, 1/8 in MNPT x 10-32 UNF Female Connection, PNP Output, 45 mA at 12 to 24 V DC, +/-0.2% FS +/- 1 Digit Accuracy

Price:  $213.57 / ea

Note: Lead times are estimates only


Availability: 2-4 weeks


Quantity  ea Add to Cart

Description

Numatics® DPS/DVS 280 series digital sensors can be used as a digital pressure/vacuum gauge for accurate visual display of the current value. It can also be used as a controls device designed for applications requiring extremely accurate measurement of a specific value, then generating a digital input to the PLC or controls system. The large LCD display is easy to view. It changes color indicating the set point is achieved, causing the digital output to change state. Other features include quick response (2.5 ms or less), repeatable to +/- 0.2% of full scale +/- 1 digit, raised set buttons for simple intuitive programming of the hysteresis or window comparator modes of operation.
Numatics® Digital Pressure Switch, Series: 280, 0 to 145 psig Measuring, 1/8 in MNPT x 10-32 UNF Female Connection, PNP Output, 45 mA at 12 to 24 V DC Electrical Rating, +/-0.2% FS +/- 1 Digit Accuracy, +/-0.2% FS +/- 1 Digit Repeatability, LCD Display, 0 to 122 deg F, 1.18 in H x 1.18 in W Dimensions

Specifications

 Accuracy +/-0.2% FS +/- 1 Digit
 Application Air Ride Suspension Systems, Analytical and Diagnostic Equipment, Biofuels, Bottling, Automotive and Tire, Chemical, Food and Beverage, Medical and Life Science, Oil and Gas Industries
 Brand Name Numatics®
 Connection Size 1/8 in MNPT x 10-32 UNF Female
 Dimensions 1.18 in H x 1.18 in W
 Electrical Ratings 45 mA at 12 to 24 V DC
 Includes 2 m Mating Cable
 Manufacturer Part Number DPS280PNQ8
 Measuring Range 0 to 145 psig
 Output PNP
 PART NUMBER KEYWORDS DPS280PNQ8
 Repeatability +/-0.2% FS +/- 1 Digit
 Series 280
 Standards/Approvals CE Certified|RoHS Compliant
 Temperature Rating 0 to 122 deg F

Features

▪ Hysteresis and window comparator modes of operation
▪ Large 7 segment LCD display
▪ Selectable two color display (red/green or green/red)
▪ Large display changes color at set point achieved
▪ Selectable single color only display (red or green)
▪ Out when digital output is ON
▪ Panel display shows - selected units, operation mode, output type (no/NC), setting mode and key lock
▪ Ease of wiring 8 mm 4-Pin pico connector
