Dixon Valve & Coupling

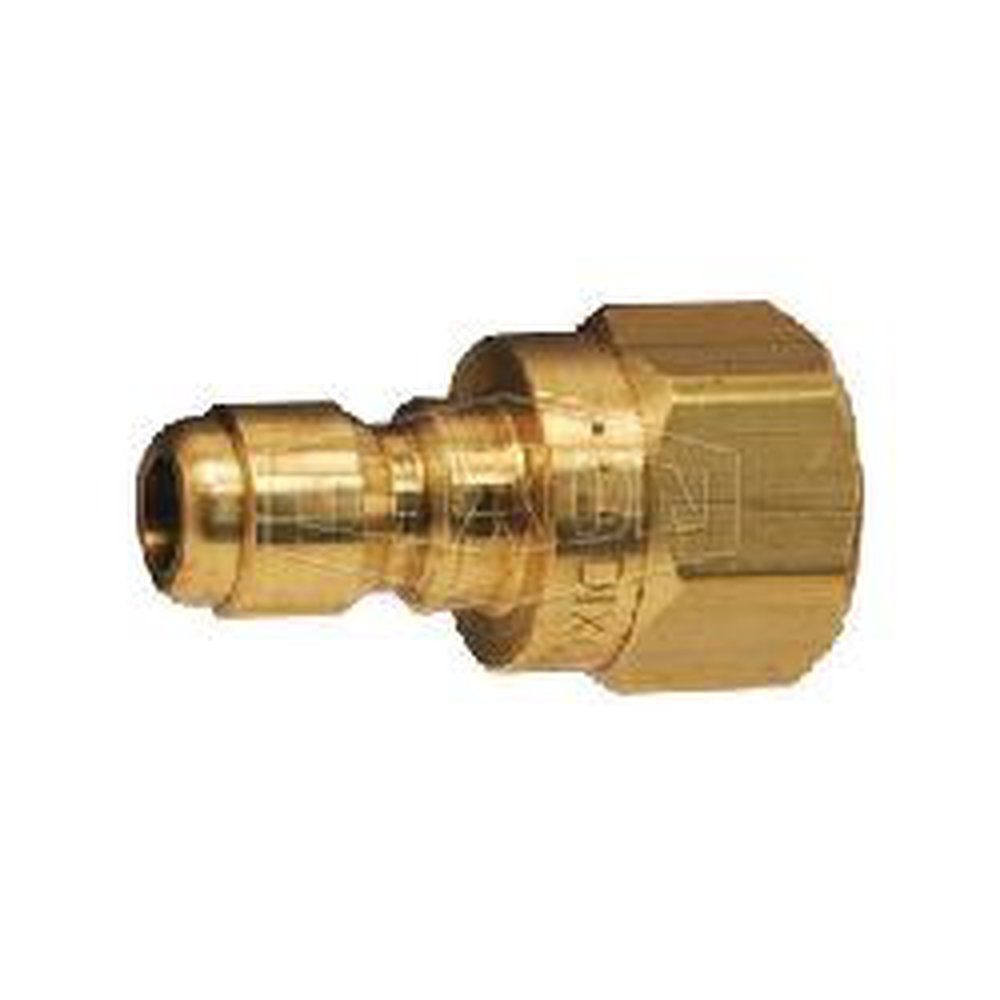

E3F3-B 3/8 BRS STRAIGHT THRU FEMALE QDC

Mouse over image to zoom, click to enlarge

Description: Dixon® Quick Connect Plug, Straight Through Interchange, 3/8-18 Nominal, FNPT, 2700 psi, Brass, Domestic

Manufacturer PN: E3F3-B

UPC:  69746446295

Forberg Smith PN: 3188932

Invoice Description:

E3F3-B 3/8 BRS STRAIGHT THRU FEMALE QDC


How Can We Make This Page Better?

Dixon® E3F3-B Straight Through Interchange Quick Connect Plug, 3/8-18 Nominal, FNPT, Brass, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Quick Connect Plug, Straight Through Interchange, 3/8-18 Nominal, FNPT, 2700 psi, Brass, Domestic

Specifications

 Brand Name Dixon®
 Domestic or Import Domestic
 End Style FNPT
 Manufacturer Part Number E3F3-B
 Material Brass
 Nominal Size 3/8-18
 PART NUMBER KEYWORDS E3F3-B ; E3F3B ; STFP3B
 Pressure Rating 2700 psi
 Type Straight Through Interchange

Features

▪ These plugs have no internal valves, providing maximum flow with minimum pressure drop
▪ Interchanges with Parker-Hannifin SST/BST, Foster FST and Hansen ST couplings
▪ 3/8 in body
▪ 2700 psi at 70 deg F pressure
▪ Do not disconnect with pressure in line
▪ Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death
▪ Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
▪ Do not use in connection with drinking water
▪ Wash hands after handling
