Dixon Valve & Coupling
G200-F-BR DIXON 2IN BRS ADP

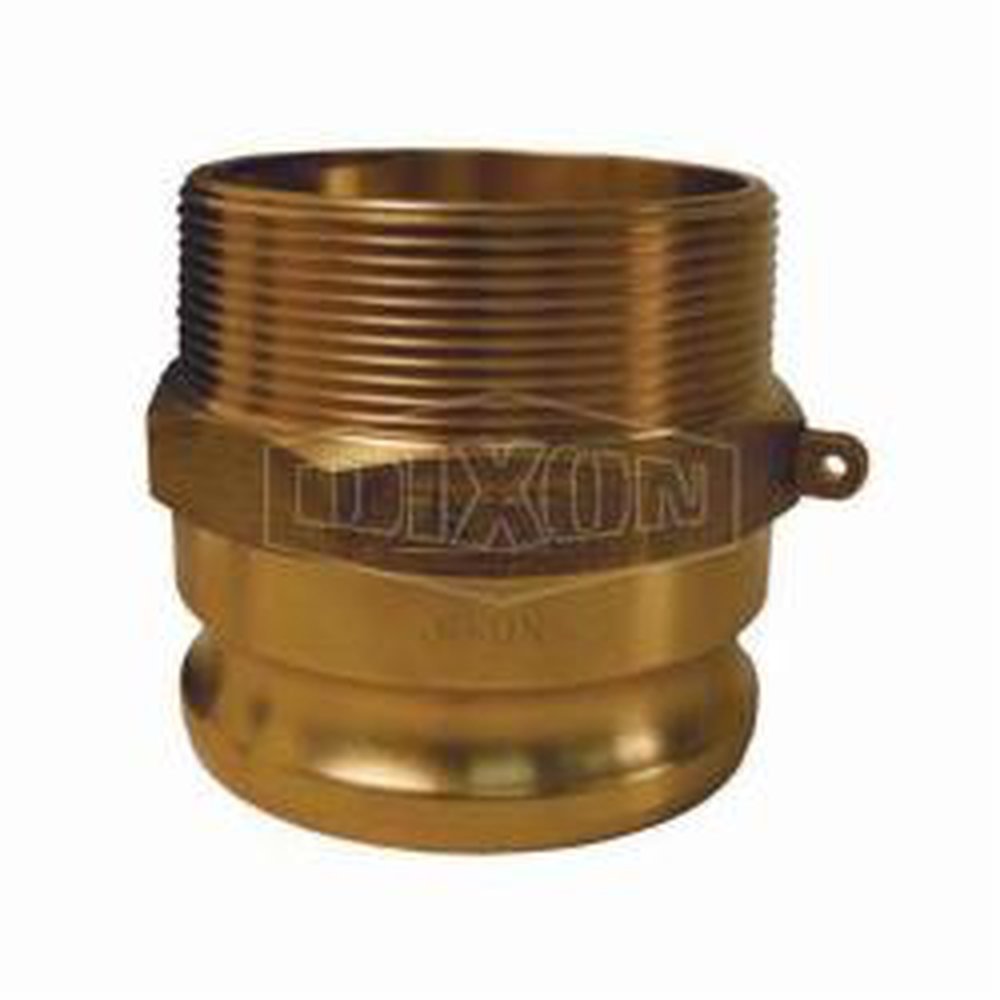

Mouse over image to zoom, click to enlarge

Description: Dixon® Cam and Groove Adapter, Type F, Series: Global, Fitting/Connector Type: Adapter, 2 in Nominal Size, Male Adapter x MNPT, 3-11/32 in Length, 250 psi, Brass, Domestic

Manufacturer PN: G200-F-BR

UPC:  69746403045

Forberg Smith PN: 3793956

Invoice Description:

G200-F-BR DIXON 2IN BRS ADP


SPEC SHEET

How Can We Make This Page Better?

Dixon® G200-F-BR Global Type F Cam and Groove Adapter, 2 in, Male Adapter x MNPT, Brass, Domestic

Log In for Pricing and Availability




Description

Dixon® Cam and Groove Adapter, Type F, Series: Global, Fitting/Connector Type: Adapter, 2 in Nominal Size, Male Adapter x MNPT, 3-11/32 in Length, 250 psi, Brass, Domestic

Specifications

 Application Designed for use with liquids
 Brand Name Dixon®
 Domestic or Import Domestic
 End Style Male Adapter x MNPT
 Fitting Type Adapter
 Length 3-11/32 in
 Manufacturer Part Number G200-F-BR
 Material Brass
 Nominal Size 2 in
 PART NUMBER KEYWORDS G200-F-BR ; G200FBR
 Pressure Rating 250 psi
 Series Global
 Standards/Approvals Designed to interchange with all products produced to A-A-59326D
 Type Type F
 Video Links

Features

▪ ASTM C38000 forged brass
▪ Produced to interchange with all product produced to commercial item description A-A-59326D
▪ Under no circumstances should cam and groove couplings be used for compressed air or steam service!
▪ Pressure rating is based on the seal of the mating part
▪ Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
▪ Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
▪ Do not use in connection with drinking water
▪ Wash hands after handling

Resources

 Catalog
 Catalog Page
 Product Data Sheet
