Dixon Valve & Coupling

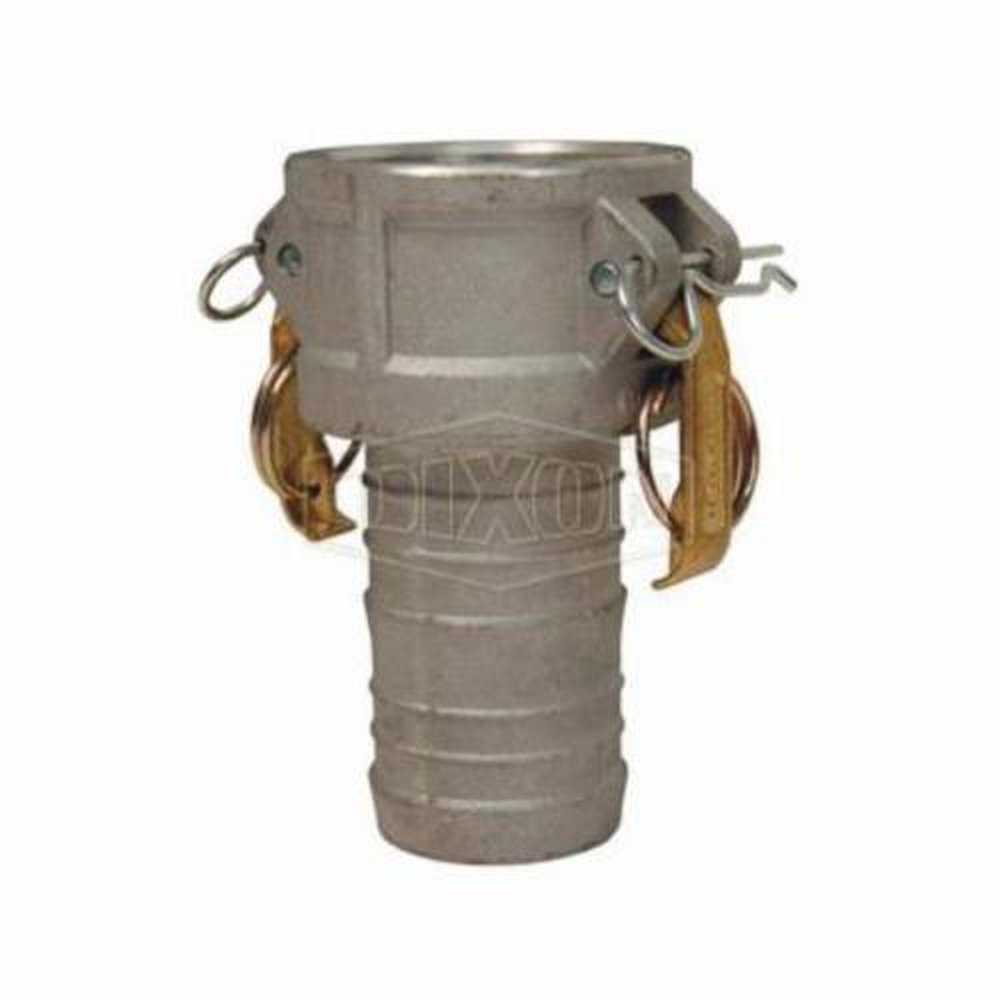

G250-C-AL DIXON 2-1/2 AL CPLR

Mouse over image to zoom, click to enlarge

Description: Dixon® Cam and Groove Coupler, Type-C, Series: Global, Coupling Fitting/Connector, 2-1/2 in Nominal, Female Coupler x Hose Shank End Style, 5-5/16 in Length, 150 psi Pressure, Aluminum, Domestic

Manufacturer PN: G250-C-AL

UPC:  69746499042

Forberg Smith PN: 4396977

Invoice Description:

G250-C-AL DIXON 2-1/2 AL CPLR


How Can We Make This Page Better?

Dixon® G250-C-AL Global Type-C Cam and Groove Coupler, 2-1/2 in Nominal, Female Coupler x Hose Shank End Style, Aluminum, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Cam and Groove Coupler, Type-C, Series: Global, Coupling Fitting/Connector, 2-1/2 in Nominal, Female Coupler x Hose Shank End Style, 5-5/16 in Length, 150 psi Pressure, Aluminum, Domestic

Specifications

 Application Designed for use with liquids
 Brand Name Dixon®
 Domestic or Import Domestic
 End Style Female Coupler x Hose Shank
 Fitting Type Coupling
 Length 5-5/16 in
 Manufacturer Part Number G250-C-AL
 Material Aluminum
 Nominal Size 2-1/2 in
 PART NUMBER KEYWORDS G250-C-AL ; G250CAL
 Pressure Rating 150 psi
 Series Global
 Standards/Approvals Designed to interchange with all products produced to A-A-59326D
 Type Type-C
 Video Links

Features

▪ 8 in open x 4-13/32 in closed across cam arm
▪ A380 permanent mold aluminum
▪ Brass handle
▪ Produced to interchange with all product produced to commercial item description A-A-59326D
▪ Under no circumstances should cam and groove couplings be used for compressed air or steam service!
▪ Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
▪ Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
▪ Do not use in connection with drinking water
▪ Wash hands after handling

Resources

 Catalog
 Catalog Page
