Dixon Valve & Coupling

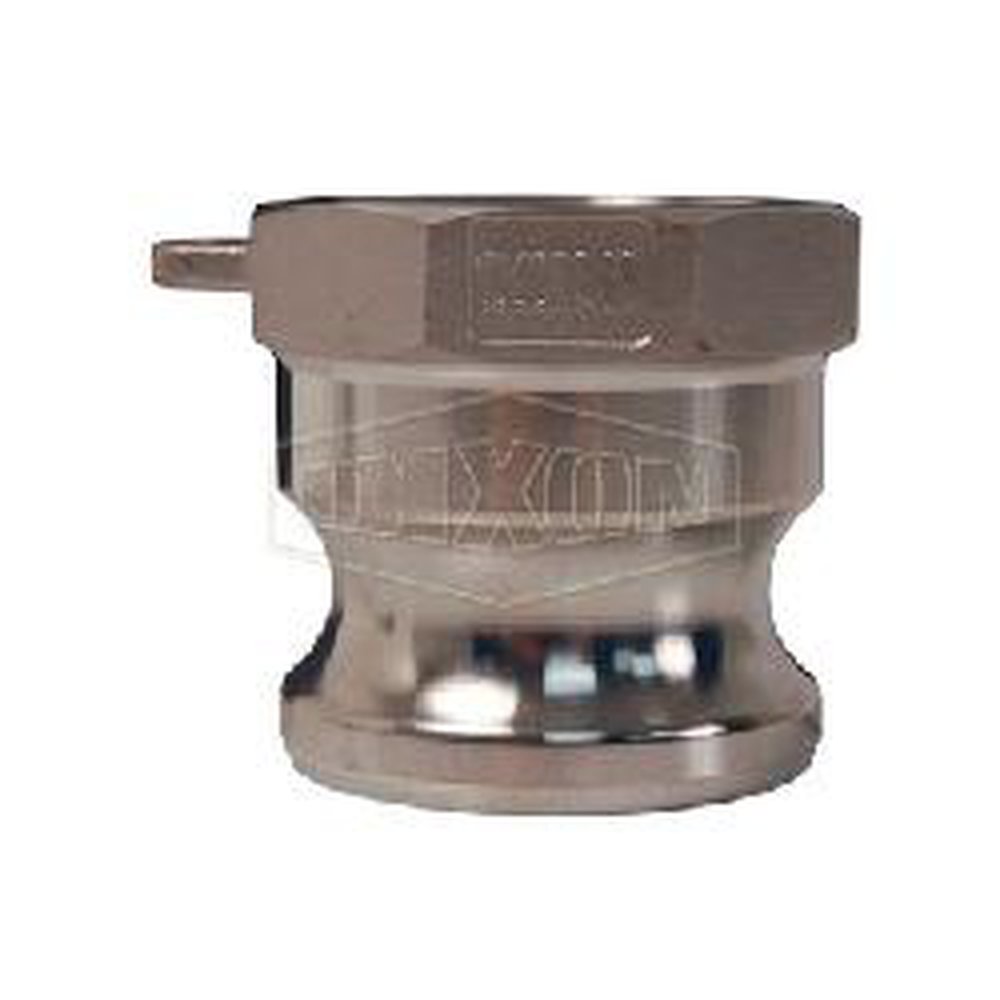

G300-A-SS DIXON 3IN SS ADPT

Mouse over image to zoom, click to enlarge

Description: Dixon® Cam and Groove Adapter, Type A, Fitting/Connector Type: Adapter, 3 in Nominal Size, Male Adapter x FNPT, 3-1/4 in Length, 125 psi, 316 Stainless Steel, 3-19/32 in Dia, Import

Manufacturer PN: G300-A-SS

UPC:  69746499015

Forberg Smith PN: 3667145

Invoice Description:

G300-A-SS DIXON 3IN SS ADPT


How Can We Make This Page Better?

Dixon® G300-A-SS Type A Cam and Groove Adapter, 3 in, Male Adapter x FNPT, 316 Stainless Steel, Import

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Cam and Groove Adapter, Type A, Fitting/Connector Type: Adapter, 3 in Nominal Size, Male Adapter x FNPT, 3-1/4 in Length, 125 psi, 316 Stainless Steel, 3-19/32 in Dia, Import

Specifications

 Application Designed for use with liquids
 Brand Name Dixon®
 Dimensions 3-19/32 in Dia
 Domestic or Import Import
 End Style Male Adapter x FNPT
 Fitting Type Adapter
 Length 3-1/4 in
 Manufacturer Part Number G300-A-SS
 Material 316 Stainless Steel
 Nominal Size 3 in
 PART NUMBER KEYWORDS G300-A-SS ; G300ASS
 Pressure Rating 125 psi
 Type Type A
 Video Links

Features

▪ Do not use in connection with drinking water
▪ Wash hands after handling
▪ Interchange with all products produced to A-A-59326D
▪ Made to Dixon specifications and branded Dixon
▪ Buna seals are standard
▪ Pressure rating for adapters is based on the seal of the mating part
▪ Under no circumstances should cam and groove couplings be used for compressed air or steam service!
▪ Pressure rating is based on the seal of the mating part
▪ Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
▪ 125 psi at ambient temperature 70 deg F pressure
▪ Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
