Dixon Valve & Coupling

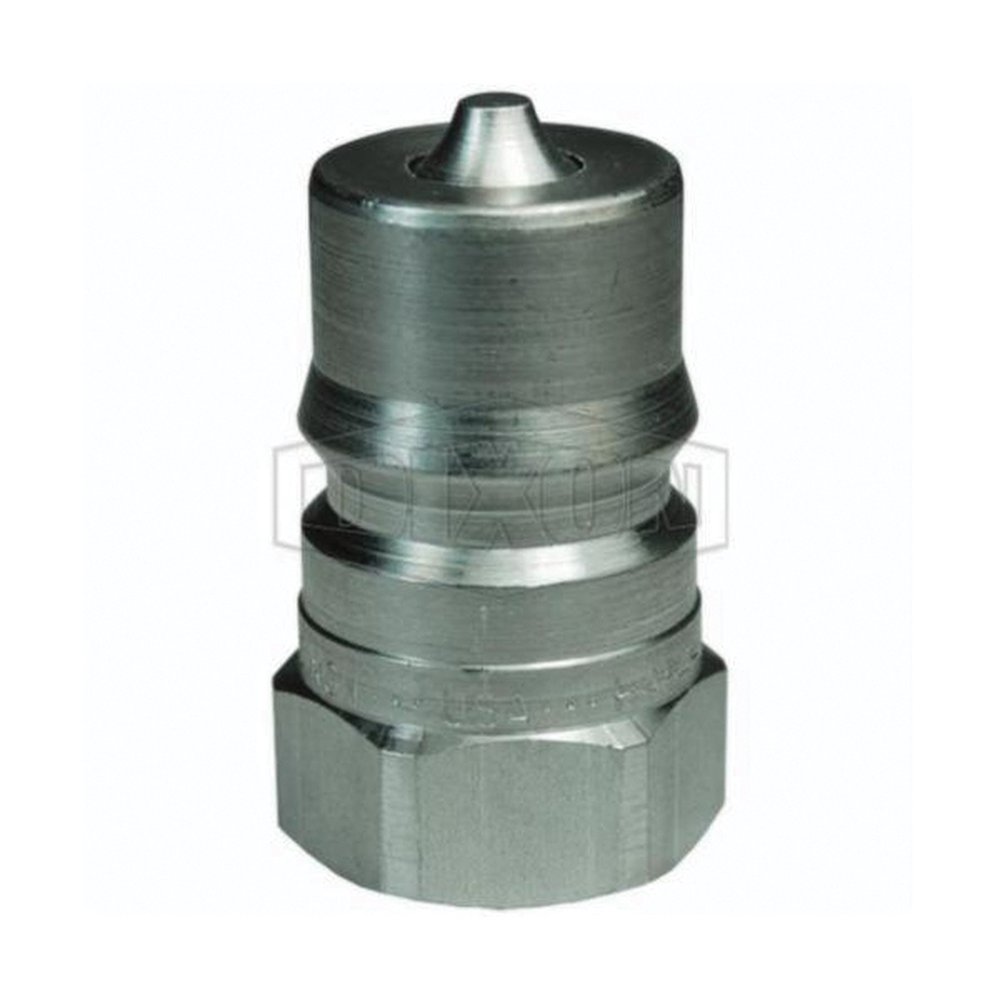

H2F2-S 1/4 DIXON SS QUICK COUPLING PLUG

Mouse over image to zoom, click to enlarge

  • H2F2-S 1/4 DIXON SS QUICK COUPLING PLUG
  • H2F2-S 1/4 DIXON SS QUICK COUPLING PLUG

Description: Dixon® Pipe Plug, Interchange, Series: H Series, 1/4-18 Nominal, FNPT, 3/4 in Hex, 1.55 in Length, 3500 psi, -40 to 250 deg F, 303 Stainless Steel, 0.83 in OD, Domestic

Manufacturer PN: H2F2-S

Forberg Smith PN: 4558479

Invoice Description:

H2F2-S 1/4 DIXON SS QUICK COUPLING PLUG


How Can We Make This Page Better?

Dixon® H2F2-S H Series Interchange Pipe Plug, 1/4-18 Nominal, FNPT, 303 Stainless Steel, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Pipe Plug, Interchange, Series: H Series, 1/4-18 Nominal, FNPT, 3/4 in Hex, 1.55 in Length, 3500 psi, -40 to 250 deg F, 303 Stainless Steel, 0.83 in OD, Domestic

Specifications

 Brand Name Dixon®
 Dimensions 0.83 in OD
 Domestic or Import Domestic
 End Style FNPT
 Hex Size 3/4 in
 Length 1.55 in
 Manufacturer Part Number H2F2-S
 Material 303 Stainless Steel
 Nominal Size 1/4-18
 PART NUMBER KEYWORDS H2F2-S ; H2F2S
 Pressure Rating 3500 psi
 Series H Series
 Standards/Approvals ISO 7241
 Temperature Rating -40 to 250 deg F
 Type Interchange

Features

▪ Machined components are manufactured using solid bar stock
▪ Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
▪ 31500 psi burst pressure
