Dixon Valve & Coupling

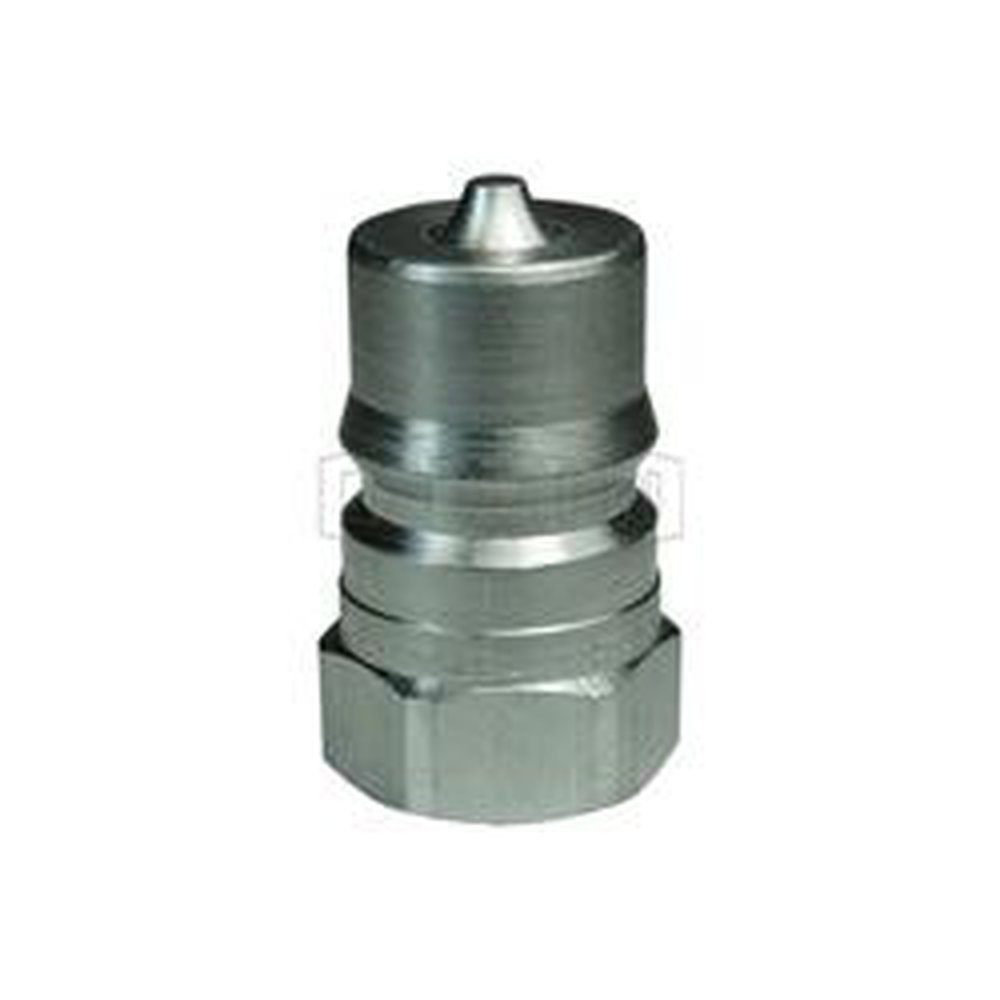

H6BF6-SS DIXON 3/4 NIPPLE 69746446441

Mouse over image to zoom, click to enlarge

  • H6BF6-SS DIXON 3/4 NIPPLE 69746446441
  • H6BF6-SS DIXON 3/4 NIPPLE 69746446441

Description: Dixon® Industrial Interchange Female Plug, Series: DQC H, 3/4-14 Nominal, Female BSPP, 1-3/8 in Hex, 2.44 in Length, 3000 psi, -40 to 250 deg F, 316 Stainless Steel, 1-1/2 in OD

Manufacturer PN: H6BF6-SS

UPC:  69746446441

Forberg Smith PN: 3620268

Invoice Description:

H6BF6-SS DIXON 3/4 NIPPLE 69746446441


How Can We Make This Page Better?

Dixon® H6BF6-SS DQC H Industrial Interchange Female Plug, 3/4-14 Nominal, Female BSPP, 316 Stainless Steel

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Industrial Interchange Female Plug, Series: DQC H, 3/4-14 Nominal, Female BSPP, 1-3/8 in Hex, 2.44 in Length, 3000 psi, -40 to 250 deg F, 316 Stainless Steel, 1-1/2 in OD

Specifications

 Brand Name Dixon®
 Dimensions 1-1/2 in OD
 End Style Female BSPP
 Hex Size 1-3/8 in
 Length 2.44 in
 Manufacturer Part Number H6BF6-SS
 Material 316 Stainless Steel
 Nominal Size 3/4-14
 PART NUMBER KEYWORDS H6BF6-SS ; H6BF6SS ; 100607-6 ; 1006076
 Pressure Rating 3000 psi
 Series DQC H
 Standards/Approvals ISO-B
 Temperature Rating -40 to 250 deg F

Features

▪ Poppet style shut-off valves
▪ Designed to prevent fluid loss when disconnected
▪ Machined components are manufactured using solid bar stock
▪ Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
▪ 3/4 in body
▪ Interchangeable with Parker-Hannifin 60 series, Snap-Tite 72-series, Hansen HK-series, Faster series 'HNV', Aeroquip/Eaton FD45, Stucchi series IRB/IRBO/IRBX
▪ Compatible with ISO 7241 series B

Resources

 Catalog Page
