Dixon Valve & Coupling

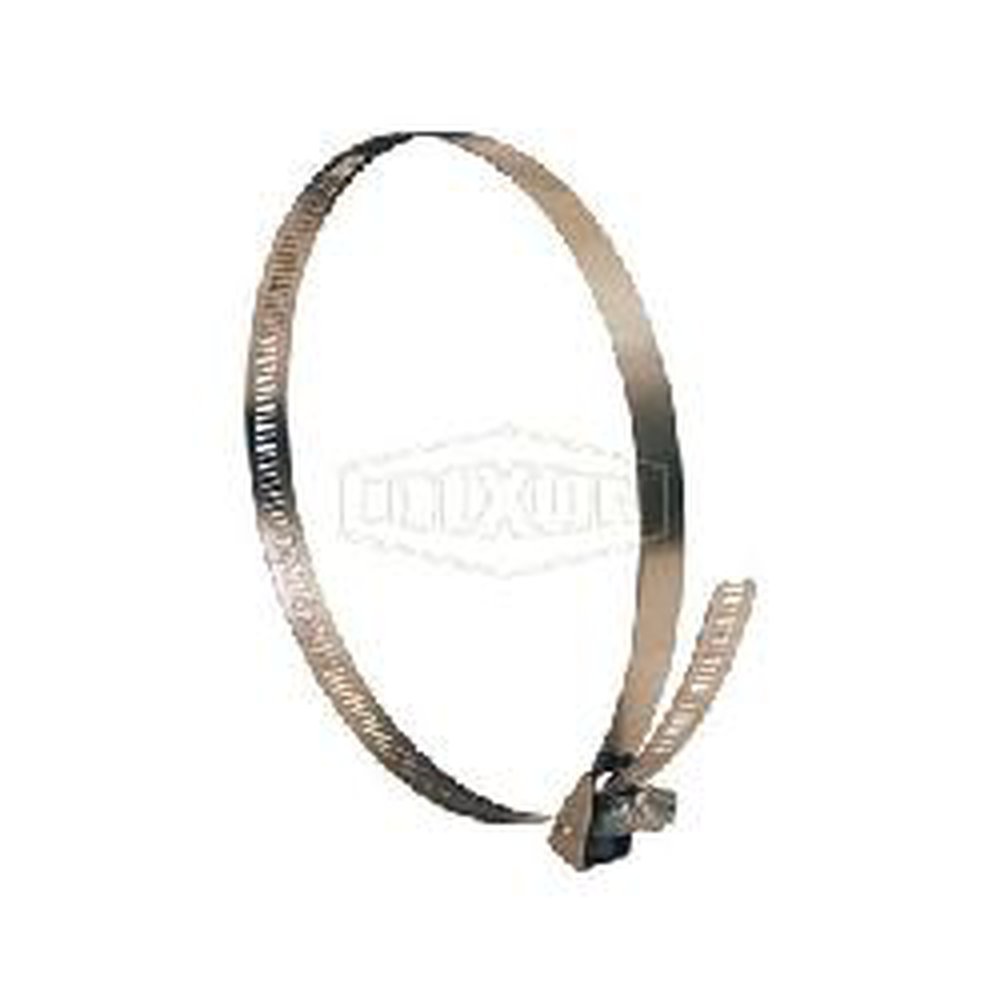

LS188 DIXON QCK RELEASE CLAMP 2-1/16 - 12-5/16

Mouse over image to zoom, click to enlarge

Description: Dixon® Worm Gear Clamp, Quick Release, Series: LS Series, Clamping Range: 2-1/16 to 12-5/16 in, 1/2 in Width, 5/16 in Bolt, 50 in-lb, Grade:201, Stainless Steel Band, Carbon Steel Bolt, Domestic

Manufacturer PN: LS188

UPC:  69746429498

Forberg Smith PN: 3046537

Invoice Description:

LS188 DIXON QCK RELEASE CLAMP 2-1/16 - 12-5/16

UNSPSC: 31162906


SPEC SHEET

How Can We Make This Page Better?

Dixon® LS188 LS Series Quick Release Worm Gear Clamp, 2-1/16 to 12-5/16 in Clamp, Stainless Steel Band, Carbon Steel Bolt, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Worm Gear Clamp, Quick Release, Series: LS Series, Clamping Range: 2-1/16 to 12-5/16 in, 1/2 in Width, 5/16 in Bolt, 50 in-lb, Grade:201, Stainless Steel Band, Carbon Steel Bolt, Domestic

Specifications

 Band Material 201 Stainless Steel
 Bolt Material Carbon Steel
 Bolt Size 5/16 in
 Brand Name Dixon®
 Clamping Range 2-1/16 to 12-5/16 in
 Domestic or Import Domestic
 Grade 201
 Manufacturer Part Number LS188
 PART NUMBER KEYWORDS LS188
 Series LS Series
 Torque Rating 50 in-lb
 Type Quick Release
 Width 1/2 in

Features

▪ 5/16 in slotted hex head screw design
▪ 201 series stainless steel band and housing
▪ Hardened plated carbon steel screw
▪ Torque ratings correspond to the torque rating of the screw of the clamp and are not an indication of the working pressure of any hose assembly installed with this clamp
▪ Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
▪ Do not use in connection with drinking water
▪ Wash hands after handling
