Merit Brass

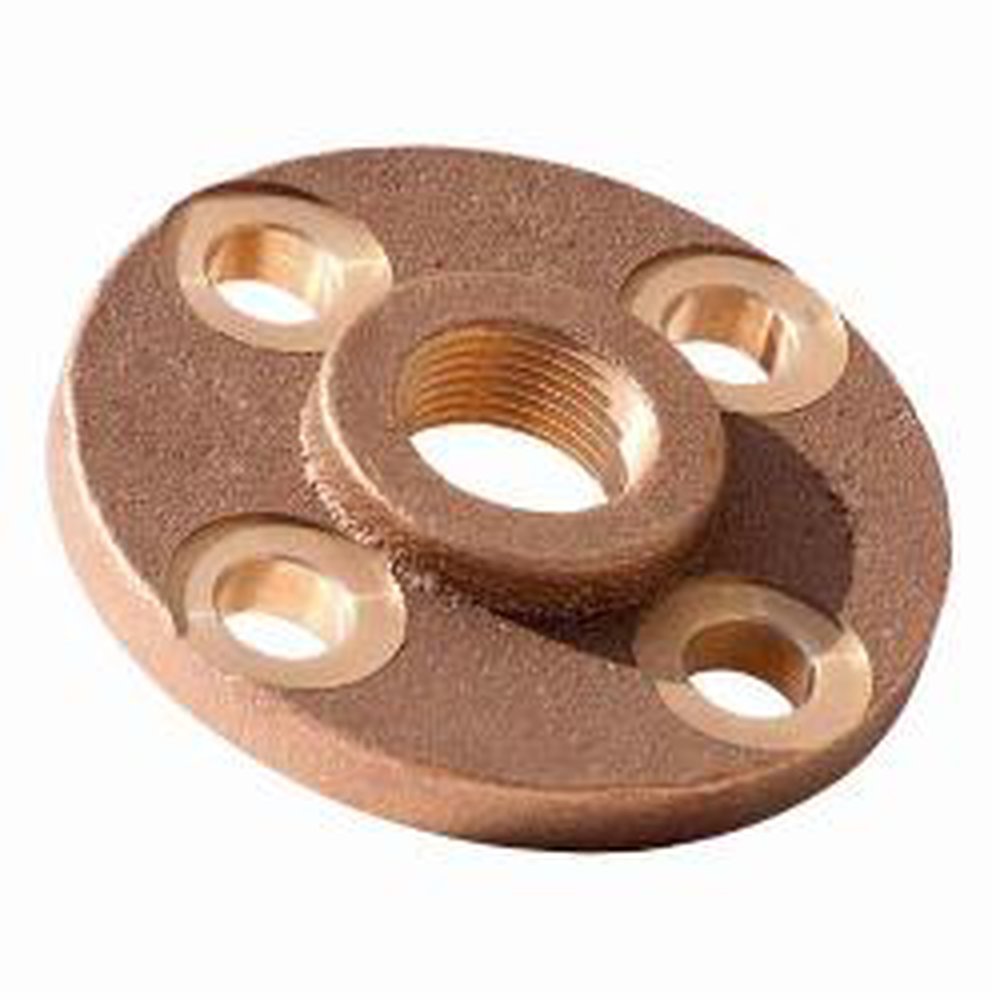

(I) 3 LF BRS 150 LB THD COMPANION FLG XNL235-48

Mouse over image to zoom, click to enlarge

Description: Merit Brass Companion Flange, 3 in Nominal, 0.62 in Thickness, 6 in Diameter Bolt Circle, 4 Bolt Holes, 3/4 in Bolt Hole, Thread Connection, 7-1/2 in OD, 150 lb Pressure Class, 1.19 in Length Through Hub, Brass, Domestic/Import: Import

Manufacturer PN: XNL235-48

UPC:  67140412643

Forberg Smith PN: 3048181

Invoice Description:

(I) 3 LF BRS 150 LB THD COMPANION FLG XNL235-48


SPEC SHEET

How Can We Make This Page Better?

Merit Brass XNL235-48 Companion Flange, 3 in Nominal, Brass, Thread Connection, 150 lb, Import

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Merit Brass Companion Flange, 3 in Nominal, 0.62 in Thickness, 6 in Diameter Bolt Circle, 4 Bolt Holes, 3/4 in Bolt Hole, Thread Connection, 7-1/2 in OD, 150 lb Pressure Class, 1.19 in Length Through Hub, Brass, Domestic/Import: Import

Specifications

 Bolt Circle Diameter 6 in
 Bolt Hole Size 3/4 in
 Brand Name Merit Brass
 Connection Type Thread
 Domestic or Import Import
 Length Through Hub 1.19 in
 Manufacturer Part Number XNL235-48
 Material Brass
 Nominal Size 3 in
 Number of Bolt Holes 4
 PART NUMBER KEYWORDS XNL235-48 ; XNL23548 ; 671404126438 ; 67140412643 ; 10671404126435
 Standards/Approvals ANSI B16.5|ASME SA182|ASTM A182

Resources

 Product Data Sheet
