Dixon Valve & Coupling
L14AM7V-R250 DIXON 2-1/2 SS WLD FRL

Mouse over image to zoom, click to enlarge

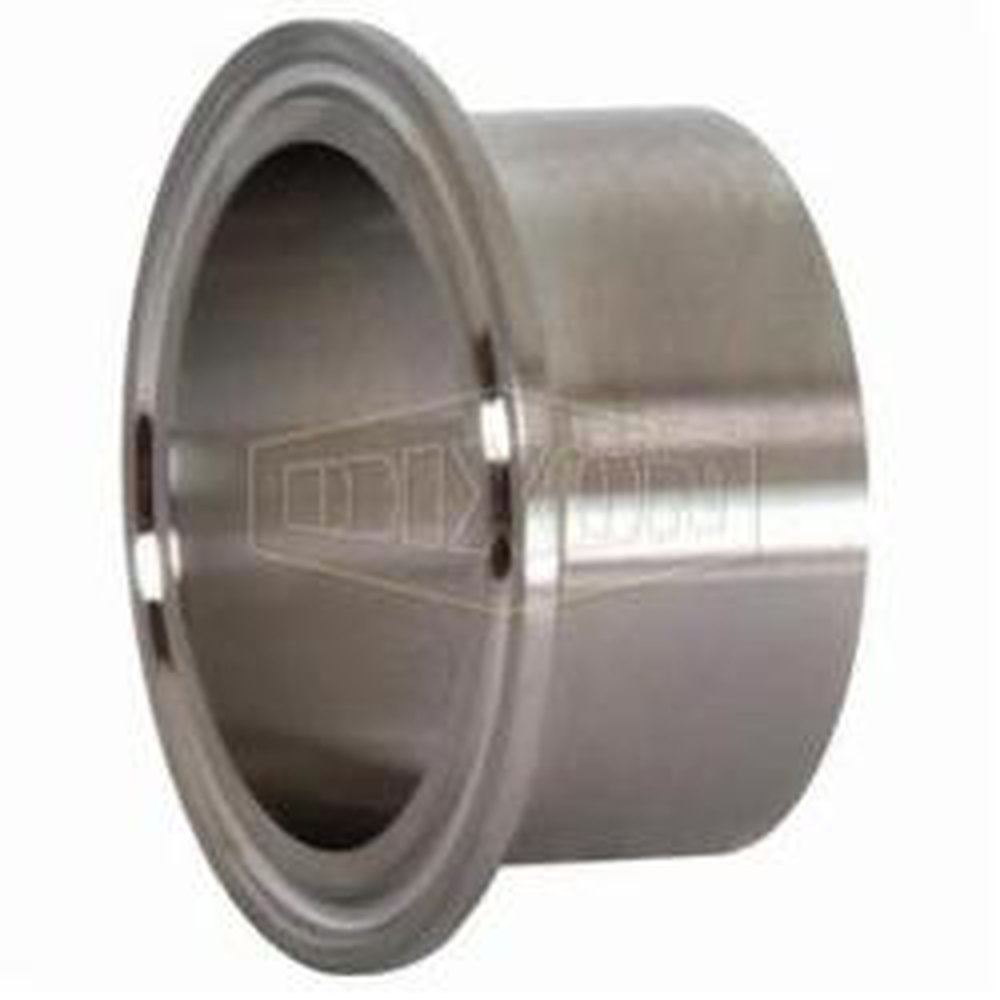

Description: Dixon® Weld Ferrule, Long, Fitting/Connector Type: Ferrule, 2-1/2 in Nominal Size, 0.083 in Thickness, SCH 5S, 316L Stainless Steel, 2.88 in Dia x 1.125 in L, Domestic

Manufacturer PN: L14AM7V-R250

UPC:  69746414009

Forberg Smith PN: 3714549

Invoice Description:

L14AM7V-R250 DIXON 2-1/2 SS WLD FRL

UNSPSC: 39120000


SPEC SHEET

How Can We Make This Page Better?

Dixon® L14AM7V-R250 Long Weld Ferrule, 2-1/2 in, 316L Stainless Steel, Domestic

Price:  $52.63 / ea


Availability: 2 ea  i


Quantity  ea Add to Cart

Description

Dixon® Weld Ferrule, Long, Fitting/Connector Type: Ferrule, 2-1/2 in Nominal Size, 0.083 in Thickness, SCH 5S, 316L Stainless Steel, 2.88 in Dia x 1.125 in L, Domestic

Specifications

 Brand Name Dixon®
 Dimensions 2.88 in Dia x 1.125 in L
 Domestic or Import Domestic
 Fitting Type Ferrule
 Manufacturer Part Number L14AM7V-R250
 Material 316L Stainless Steel
 Nominal Size 2/1/2002 in
 Schedule Rating SCH 5S
 Standards/Approvals 3-A Sanitary Standards for Sanitary Fittings|No. 63-03 (Authorization No. 621)
 Type Long

Features

▪ 3A sanitary finish ID and OD
▪ Please note in sizes 1/2 in through 12 in pipe is known by its nominal inside diameter, which differs from its actual inside diameter
▪ To distinguish pipe sizes from actual measured diameters as used for tube, the terms iron pipe size (IPS) or nominal pipe size (NPS) are usually used
▪ For all pipe sizes, the outside diameter (OD) remains constant; the variations in wall thickness affect the inside diameter (ID)
