IPEX

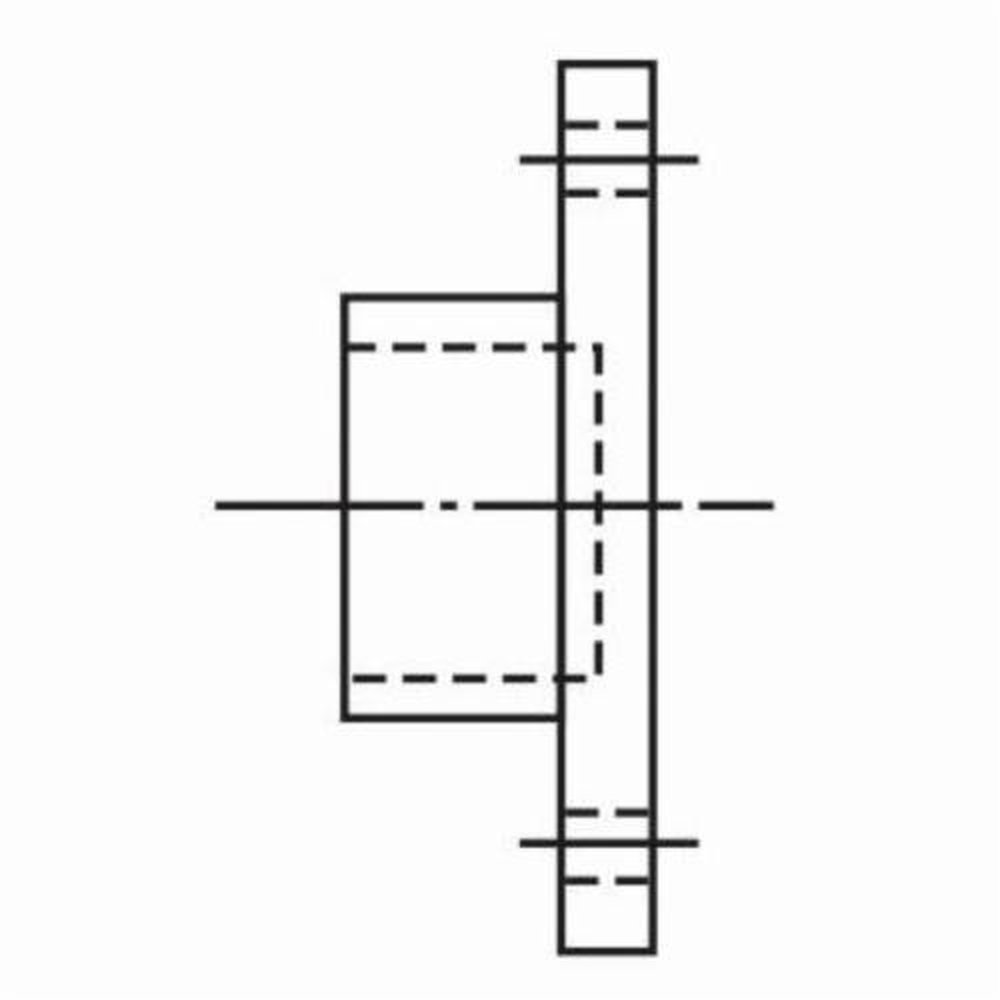

L363 3" ENFIELD FLANGE

Mouse over image to zoom, click to enlarge

Description: IPEX Enfield™ Electrofusion Socket Flange, 3 in Nominal, SCH 40/STD Bore, 150 lb, -10 to 212 deg F, Polypropylene, 11/16 in L

Manufacturer PN: L363

Forberg Smith PN: 4338262

Invoice Description:

L363 3" ENFIELD FLANGE


SPEC SHEET


IPEX Enfield™ Electrofusion 257366 Socket Flange, 3 in, Polypropylene, 150 lb, SCH 40/STD Bore

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Enfield electrofusion fittings are molded with an integral resistance wire in the socket, with jointing completed by energizing the resistance wire via a microprocessor controlled enfusion control unit. The result of these innovations is an unparalleled level of joint reliability and repeatability. Enfield has proven over time that it produces the optimum level of performance where it matters most, at the joint interface. It offers unprecedented control of jointing - controlled fit, controlled temperature and controlled time.
IPEX Enfield™ Electrofusion Socket Flange, 3 in Nominal, SCH 40/STD Bore, 150 lb, -10 to 212 deg F, Polypropylene, 11/16 in L

Specifications

 Bore Size SCH 40/STD
 Brand Name IPEX®
 Dimensions 11/16 in L
 Manufacturer Part Number 257366
 Material Polypropylene
 Nominal Size 3 in
 PART NUMBER KEYWORDS 257366 ; L363 ; 622454039445 ; 62245403944
 Standards/Approvals ASTM F1412/D4101|CSA B181.3|IAPMO Listed|NSF Approved
 Temperature Rating -10 to 212 deg F

Features

▪ Installed cost 50% less than glass
▪ Breakage factor eliminated
▪ Maintenance free
▪ Flame retardant polypropylene
▪ Positive reliable joints made in 2 minutes, installation time is reduced
▪ Several joints can be made at one time
▪ Proven reliability for over a decade
▪ Enfield is manufactured from polypropylene which has an operating temperature range from -10 to 212 deg F, this allows systems to be flushed with boiling water
▪ Heavy gauge resistance wire molded into sockets, no loose components, controlled fusion of joints
▪ Easy connecting heavy duty socket terminal posts complete with protection ears
▪ Microprocessor controlled enfusion unit ensures secure joints and joint repeatability
▪ Matched system, high quality pipe and fittings are matched to give ease of installation and long term reliability
▪ Environmentally responsible, with energy conservation a prime concern, you can rely on the fact that IPEX's manufacturing process for Xirtec® and Corzan® piping materials requires less than half the energy needed to produce the equivalent size of carbon steel or steel alloy materials
