OP-F-1 DWYER ORIFICE PLATE FLOWMETER, 2 IN

Mouse over image to zoom, click to enlarge

Manufacturer PN: OP-F-1

Forberg Smith PN: 4282381

Invoice Description:

OP-F-1 DWYER ORIFICE PLATE FLOWMETER, 2 IN

UNSPSC: 39120000

▸ See All in Dwyer Flowmeters and Accessories


How Can We Make This Page Better?

DWYER OP-F-1 SERIES OP ORIFICE PLATE FLOWMETER

Price:  $876.09 / ea

Note: Lead times are estimates only


Availability: 1-2 weeks


Quantity  ea Add to Cart

Description

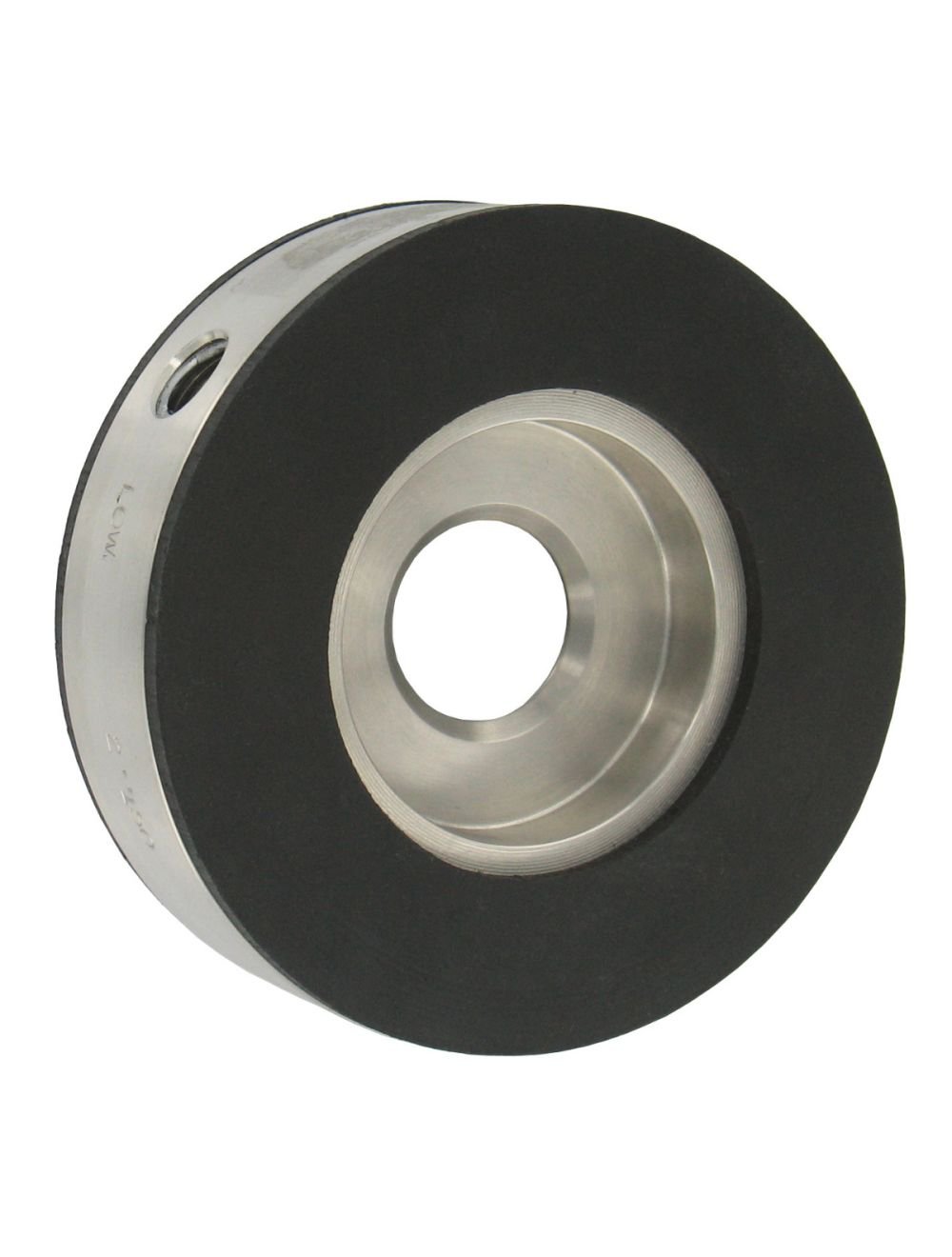

The Series OP Orifice Plate Flowmeter is a complete orifice plate flow metering package. It incorporates a stainless steel orifice plate with a unique holder or carrier ring containing metering taps and integral gaskets. It was designed for use wherever there is an application for a conventional flow orifice plate. It can also be used in place of other primary differential producers for efficiency and cost effectiveness. Installation is accomplished simply by slipping the unit between standard flanges (orifice flanges are not required). The Series OP is available in line sizes from 1/2" to 24" and can be used with compatible liquids and gases.
Orifice plate flowmeter, 2" line size, 0.600" bore, 0.29 Beta, water capacity: 20" d.p. W/C, 5.52 GPM flow; air capacity: 20" d.p. W/C, 20.92 SCFM @ 14.7 psia, 32.38 SCFM @ 20 psig, 59.13 SCFM @ 100 psig; 3 lb.

Specifications

 Brand Name Dwyer
 Manufacturer PN OP-F-1
 Manufacturer Standard Lead-Time Availability: 4-5 Weeks*
 Mfr Cat L1 FLOW
 Mfr Cat L2 FLOWMETERS
 Mfr Cat L3 ORIFICE PLATE
 Series SERIES OP ORIFICE PLATE FLOWMETER
