Dixon Valve & Coupling

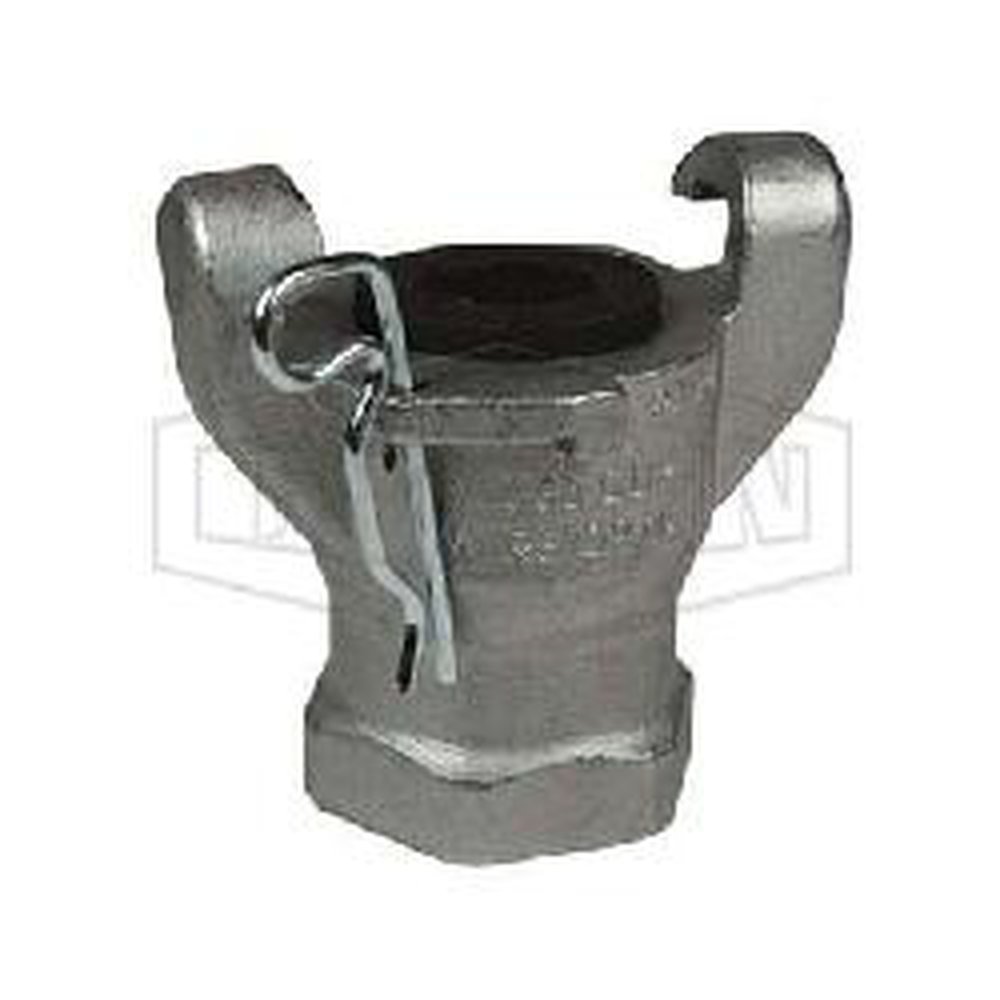

PKM0046796 RAM8 CHICAGO TYPE FITTING 3/4" FEM END

Mouse over image to zoom, click to enlarge

Description: Dixon® Hose End Coupling, Universal, Series: Air King™, 3/4 in Nominal, FNPT, 3/8 in Hex, 150 psi, 316 Stainless Steel

Manufacturer PN: RAM8

UPC:  69746408022

Forberg Smith PN: 3173332

Invoice Description:

PKM0046796 RAM8 CHICAGO TYPE FITTING 3/4" FEM END


SPEC SHEET

How Can We Make This Page Better?

Dixon® RAM8 Air King™ Universal Hose End Coupling, 3/4 in, FNPT, 316 Stainless Steel

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Hose End Coupling, Universal, Series: Air King™, 3/4 in Nominal, FNPT, 3/8 in Hex, 150 psi, 316 Stainless Steel

Specifications

 Application For air and water service only
 Brand Name Dixon®
 End Style FNPT
 Hex Size 3/8 in
 Manufacturer Part Number RAM8
 Material 316 Stainless Steel
 Nominal Size 3/4 in
 PART NUMBER KEYWORDS RAM8
 Pressure Rating 150 psi
 Series Air King™
 Type Universal

Features

▪ Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
▪ Do not use in connection with drinking water
▪ Wash hands after handling
▪ Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place
▪ Air king meets pressure requirements as specified in A-A-59553 commercial item description superseding mil Spec.WWC-633D
▪ Supplied with rubber washer, part no AWR4
▪ Rubber seal
▪ Never use any air king coupling for steam service!
▪ The use of an air king safety clip or wire type retainer is necessary to ensure air king universal couplings will not become accidentally disconnected
▪ To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose
▪ Pressure rating given at ambient temperature 70 deg F
▪ 150 psi at 70 deg f pressure

Resources

 Catalog
 Catalog Page
 Product Data Sheet
