Dixon Valve & Coupling

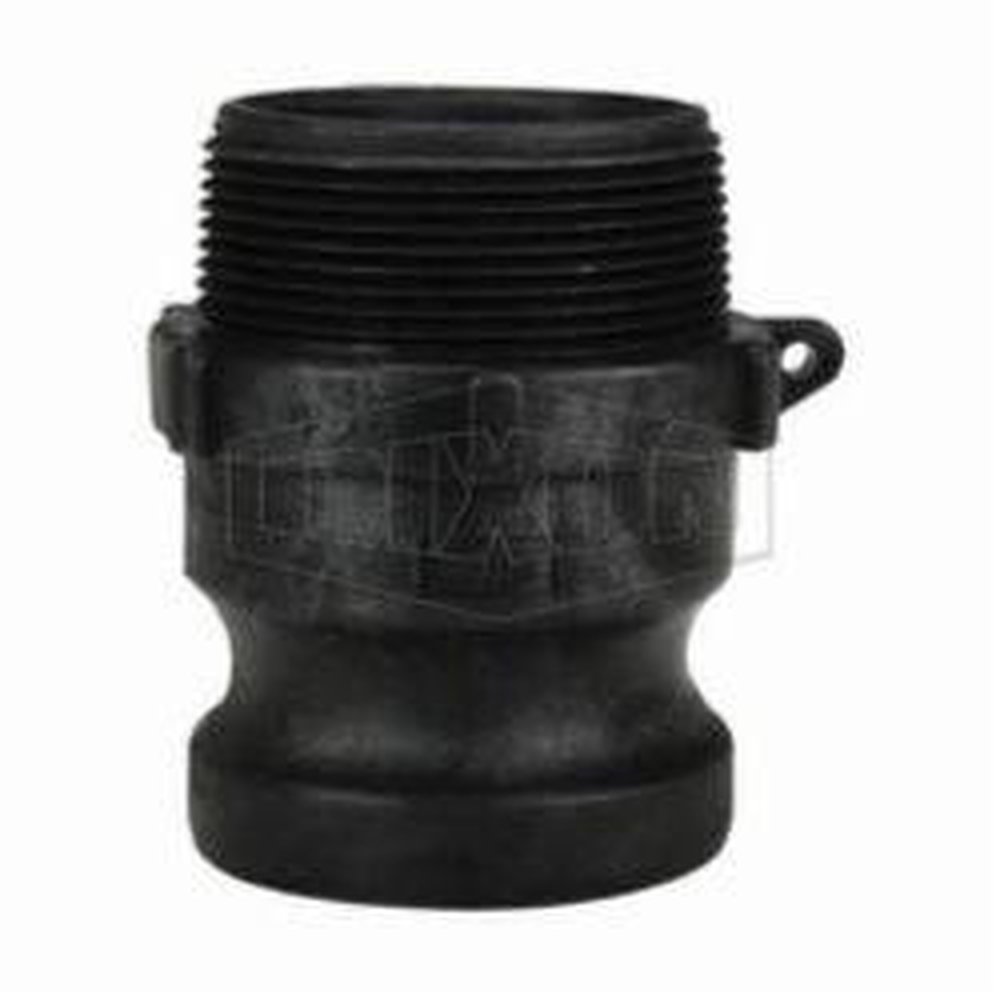

PPF400 4 PP CAM & GRV MALE ADPT MALE X MALE

Mouse over image to zoom, click to enlarge

Description: Dixon® Cam and Groove Adapter, Type F, Fitting/Connector Type: Adapter, 4 in Nominal Size, Male Adapter x MNPT, 50 psi, Polypropylene, Domestic

Manufacturer PN: PPF400

UPC:  69746426809

Forberg Smith PN: 3129686

Invoice Description:

PPF400 4 PP CAM & GRV MALE ADPT MALE X MALE


SPEC SHEET

How Can We Make This Page Better?

Dixon® PPF400 Type F Cam and Groove Adapter, 4 in, Male Adapter x MNPT, Polypropylene, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Cam and Groove Adapter, Type F, Fitting/Connector Type: Adapter, 4 in Nominal Size, Male Adapter x MNPT, 50 psi, Polypropylene, Domestic

Specifications

 Brand Name Dixon®
 Domestic or Import Domestic
 End Style Male Adapter x MNPT
 Fitting Type Adapter
 Manufacturer Part Number PPF400
 Material Polypropylene
 Nominal Size 4 in
 PART NUMBER KEYWORDS PPF400
 Pressure Rating 50 psi
 Type Type F

Features

▪ Manufactured from glass-filled polypropylene
▪ Under no circumstances should cam and groove couplings be used for compressed air or steam service!
▪ Pressure rating is based on the seal of the mating part
▪ Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
▪ Polypropylene cam and groove should not be mixed with metal fittings
▪ Not recommended for use with PTFE gaskets
▪ Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
▪ Do not use in connection with drinking water
▪ Wash hands after handling

Resources

 Catalog
 Catalog Page
 Product Data Sheet
