Neles Corporation

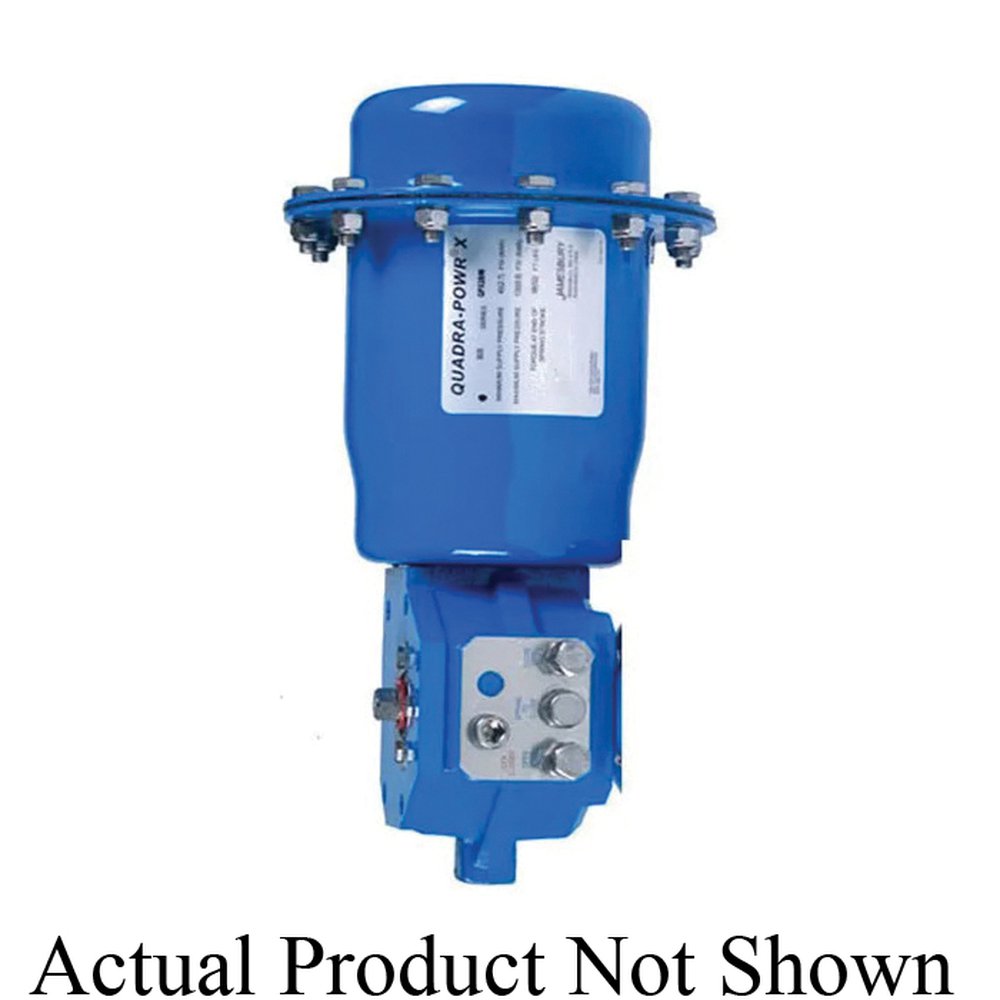

QPX1C/MC QUDRAPOWR ACT S RET

Mouse over image to zoom, click to enlarge

Description: Jamesbury™ Quadra-Powr™ X Pneumatic Spring-Diaphragm Rotary Actuator, Model C 1/4 Turn, Series: QPX, 1 Actuator, 15 to 796 N-m Output Torque, -5 to 5 deg/85 to 95 deg Travel Adjustment, 2 s Air/Spring Timing, 60 psi Pressure, -20 to 150 deg F, Direct Mounting, Ductile/Gray Iron Body, Carbon Steel Spring Trim, For Use With: Modulating Control and On-Off Services

Manufacturer PN: C0221603

Forberg Smith PN: 3752384

Invoice Description:

QPX1C/MC QUDRAPOWR ACT S RET


SPEC SHEET

How Can We Make This Page Better?

Jamesbury™ Quadra-Powr™ X C0221603 QPX Model C 1/4 Turn Pneumatic Spring-Diaphragm Rotary Actuator, 1 Actuator, 15 to 796 N-m Output, Ductile/Gray Iron Body

Log In for Pricing and Availability




Description

Jamesbury™ spring diaphragm QPX series quarter turn actuators are designed for use in both modulating control and on-off service. These actuators offer an exceptionally long cycle life and are well suited to operate almost any type of rotary valve. QPX actuator is designed for smooth and efficient quarter turn valve operation and it provides safe and reliable operation even when minimal supply pressure is available.
Jamesbury™ Quadra-Powr™ X Pneumatic Spring-Diaphragm Rotary Actuator, Model C 1/4 Turn, Series: QPX, 1 Actuator, 15 to 796 N-m Output Torque, -5 to 5 deg/85 to 95 deg Travel Adjustment, 2 s Air/Spring Timing, 60 psi Pressure, -20 to 150 deg F, Direct Mounting, Ductile/Gray Iron Body, Carbon Steel Spring Trim, For Use With: Modulating Control and On-Off Services

Specifications

 Body Material Ductile/Gray Iron
 Brand Name Jamesbury™
 Manufacturer Part Number C0221603
 Mounting Type Direct
 Output Torque 15 to 796 N-m
 PART NUMBER KEYWORDS C0221603 ; QPX1C/M-C ; QPX1CMC
 Pressure Rating 60 psi
 Series QPX
 Standards/Approvals IEC 61508|TUV Certified
 Suitable For Use With Modulating Control and On-Off Services
 Temperature Rating -20 to 150 deg F
 Timing 2 s Air/Spring
 Travel Adjustment -5 to 5 deg/85 to 95 deg
 Trim Material Carbon Steel Spring
 Type Model C 1/4 Turn

Features

▪ Low maintenance
▪ Male square drive
▪ Rolling diaphragm for minimum friction
▪ Low friction bearings - factory lubricated for lifetime
▪ Field reversible for spring to open or close simply by flipping actuator over
▪ Safety contained springs prevent hazards of inadvertent ejection during maintenance
▪ Corrosion-resistant, two layer epoxy and polyurethane paint with stainless steel fasteners
▪ Adjustable stops for both open and closed positions
▪ Rugged and reliable
▪ Smooth operation
▪ Accurate positioning
