Emerson Electric

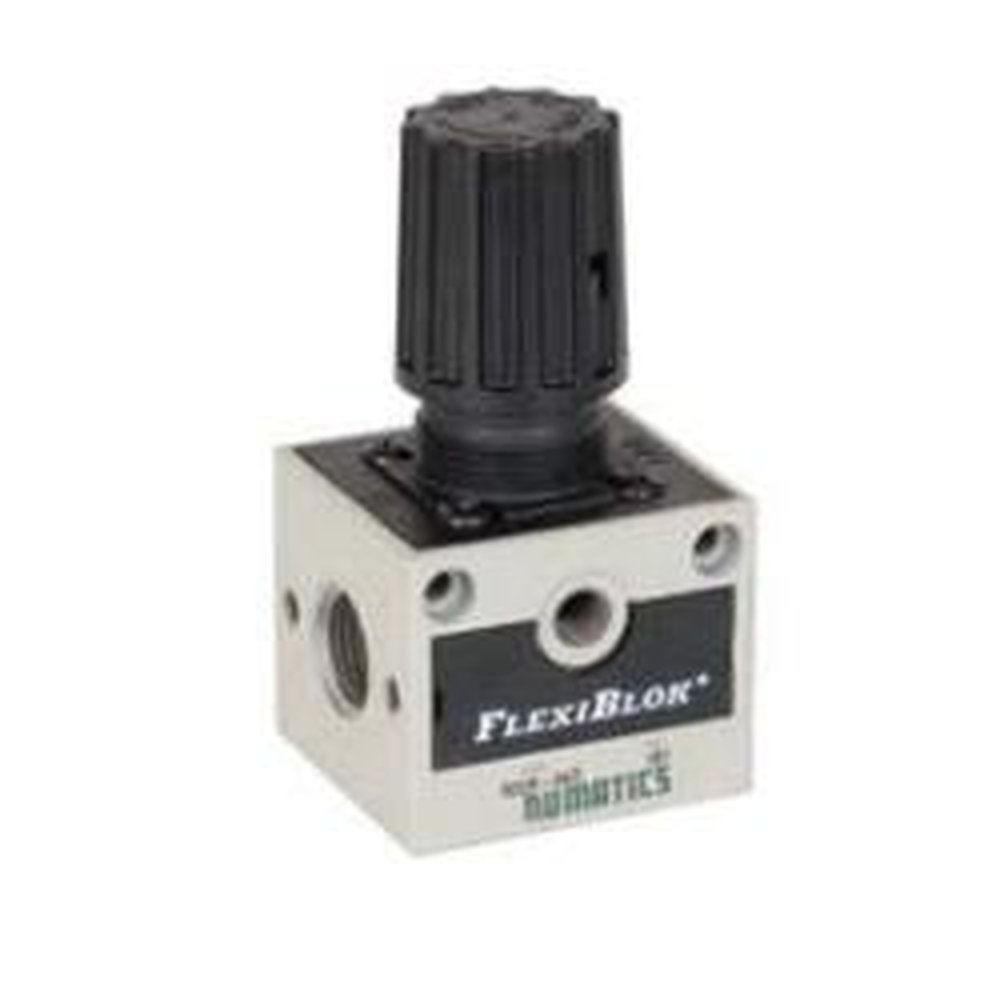

R22R02GL ASCO NUMATICS AIR SYSTEM REGULATOR

Mouse over image to zoom, click to enlarge

Description: Numatics® FlexiBlok® Air Regulator, Relieving, Series: FRL 22, 1/4 in FNPT, 70 scfm, 200 psig, 40 to 120 deg F, Aluminum

Manufacturer PN: R22R-02GL

Forberg Smith PN: 66874

Invoice Description:

R22R02GL ASCO NUMATICS AIR SYSTEM REGULATOR


How Can We Make This Page Better?

Numatics® FlexiBlok® R22R-02GL FRL 22 Relieving Air Regulator With Gauge, 1/4 in FNPT, 70 scfm Flow Rate, 200 psig Pressure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The Numatics Modular Flexiblok FRL products are available in four sizes. Our 14, 22, 32 and 42 series range in port size from 1/8 to 1 inch with flow rates from 30 to 300 scfm. Our 22, 32 and 42 series are cast from high strength lightweight aluminum making them perfect for applications such as robotic arms where total weight is at a premium. The Flexiblok advantage offers a square head design with integral mounting holes simplifying mounting by eliminating costly brackets. Direct connect modularity mounts one component to the next with a single O-Ring seal and two button head screws eliminating adapters and therefore cost and potential leak points.
Numatics® FlexiBlok® Air Regulator, Relieving, Series: FRL 22, 1/4 in FNPT, 70 scfm, 200 psig, 40 to 120 deg F, Aluminum

Specifications

 Brand Name Numatics®
 Flow Rate 70 scfm
 Manufacturer Part Number R22R-02GL
 Material Aluminum
 PART NUMBER KEYWORDS R22R-02GL ; R22R02GL
 Port Size 1/4 in FNPT
 Pressure Rating 200 psi
 Series FRL 22
 Standards/Approvals ANSI Specified
 Temperature Rating 40 to 120 deg F
 Type Relieving

Features

▪ Modular and easy to assemble
▪ Combination coalescing filter/regulator with 3 micron pre-filter saves space and capitol expense
