Dixon Valve & Coupling

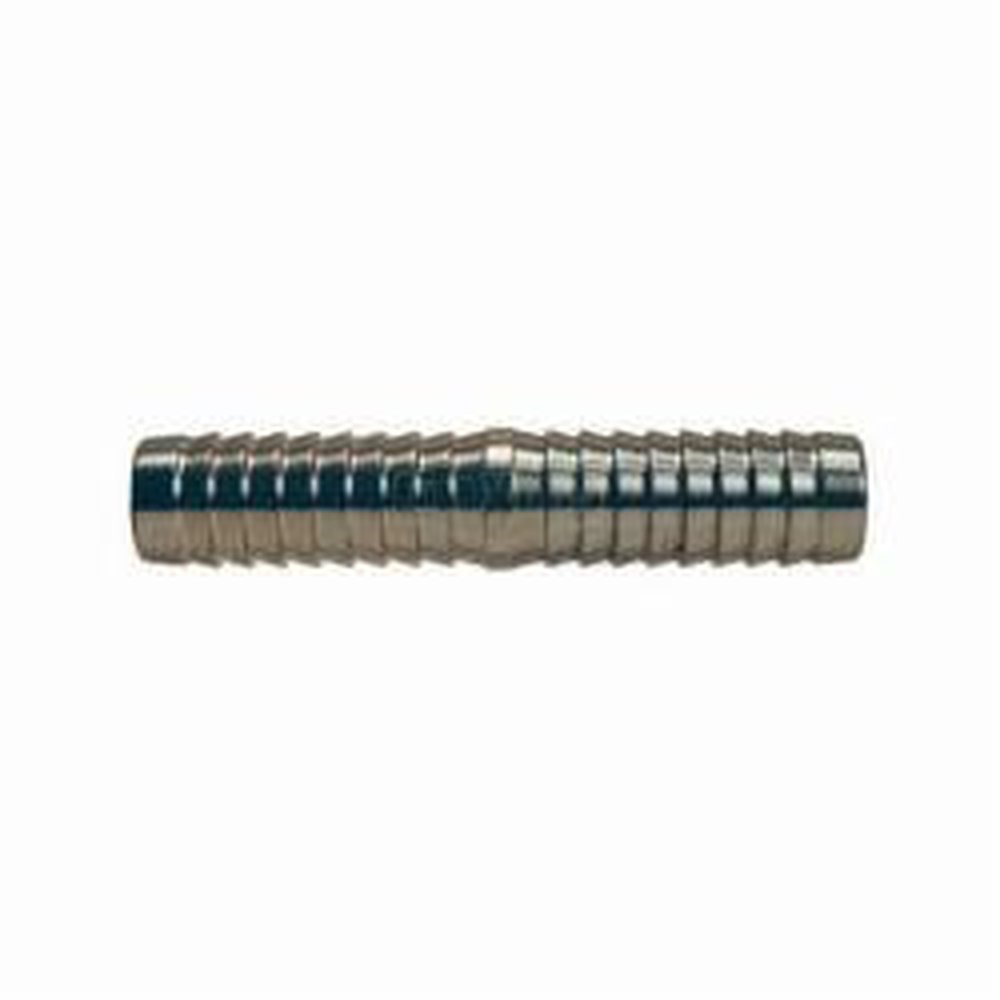

RDM1 1/2 X 1/2 SS HOSE MENDER BARB X BARB

Mouse over image to zoom, click to enlarge

Description: Dixon® Hose Mender, Fitting/Connector Type: Coupling, 1/2 in Nominal, 3 in Length, 1-15/32 in Barb Length, 316 Stainless Steel, Domestic

Manufacturer PN: RDM1

UPC:  69746411809

Forberg Smith PN: 3361301

Invoice Description:

RDM1 1/2 X 1/2 SS HOSE MENDER BARB X BARB


SPEC SHEET

How Can We Make This Page Better?

Dixon® RDM1 Hose Mender, 1/2 in, 316 Stainless Steel, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Hose Mender, Fitting/Connector Type: Coupling, 1/2 in Nominal, 3 in Length, 1-15/32 in Barb Length, 316 Stainless Steel, Domestic

Specifications

 Barb Length 1-15/32 in
 Brand Name Dixon®
 Domestic or Import Domestic
 Fitting Type Coupling
 Length 3 in
 Manufacturer Part Number RDM1
 Material 316 Stainless Steel
 Nominal Size 1/2 in
 PART NUMBER KEYWORDS RDM1 ; 089109833801 ; 08910983380 ; 89109833801
 Video Links

Features

▪ Menders are not for compressible products such as air, nitrogen or steam
▪ The working pressure may vary with the construction of the hose, the type of clamping system used and the application
▪ In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement
▪ Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
▪ Do not use in connection with drinking water
▪ Wash hands after handling

Resources

 Catalog
 Catalog Page
 Product Data Sheet
