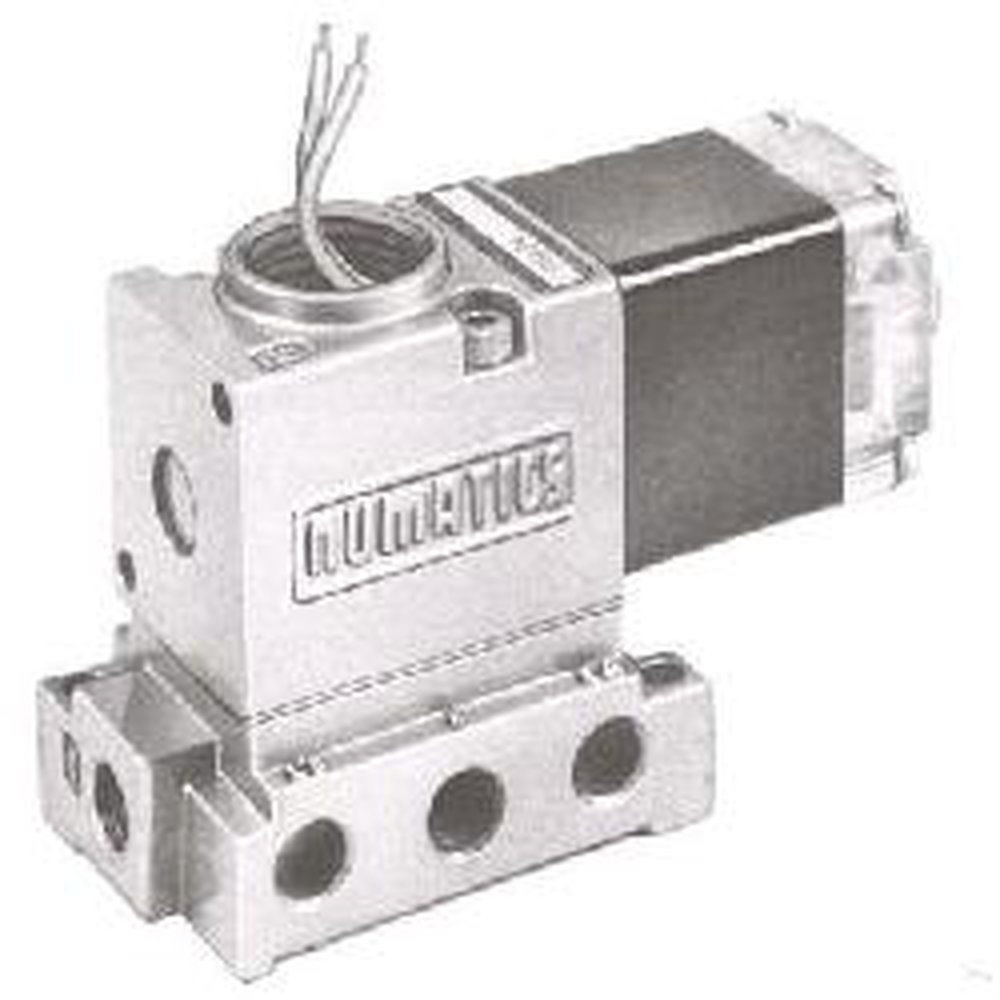

11SAD400O000030 NUMATICS MK7 SERIES SOLENOID VALVE

Mouse over image to zoom, click to enlarge

Description: Numatics® Solenoid Valve, Single, Series: 11SAD4/Mark 7, 1/4 in, 28 in Hg to 300 psig, -10 to 115 deg F, 164/176 scfm, 4 Ways, 26 mm Positions, NPTF Port, Spring Return Actuator, 2.72 in H x 4.97 in W x 1.7 in D

Manufacturer PN: 11SAD400O000030

Forberg Smith PN: 4170932

Invoice Description:

11SAD400O000030 NUMATICS MK7 SERIES SOLENOID VALVE


How Can We Make This Page Better?

Numatics® 11SAD400O000030 11SAD4/Mark 7 Single Solenoid Valve, 1/4 in Port, 28 in Hg to 300 psig Pressure, 164/176 scfm Flow Rate, 4 Ways, 26 mm Positions

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

11SAD4 Series valves are 1/8 in heavy duty, multi-purpose, 2-position, single solenoid operated, spring returned, 4-way air valves. They are of splash-proof construction and are, as standard, fitted with a recessed, Non-Locking manual operator.
Numatics® Solenoid Valve, Single, Series: 11SAD4/Mark 7, 1/4 in, 28 in Hg to 300 psig, -10 to 115 deg F, 164/176 scfm, 4 Ways, 26 mm Positions, NPTF Port, Spring Return Actuator, 2.72 in H x 4.97 in W x 1.7 in D

Specifications

 Actuator Type Spring Return
 Application Automotive, Bottling, Press Room, Metal Stamping, Tire Manufacturing and Packaging Applications
 Brand Name Numatics®
 Dimensions 2.72 in H x 4.97 in W x 1.7 in D
 Flow Rate 164/176 scfm
 Manufacturer Part Number 11SAD400O000030
 Number of Positions 26 mm
 Number of Ways 4
 PART NUMBER KEYWORDS 11SAD400O000030
 Port Size 1/4 in
 Pressure Rating 28 in Hg to 300 psig
 Series 11SAD4/Mark 7
 Temperature Rating -10 to 115 deg F
 Type Single

Features

▪ Repeatable and reliable performance in harsh environments
▪ Industry leading life performance
▪ Ideal for high cycle rate machine applications
▪ Modular design for easy configuration
