Dixon Valve & Coupling

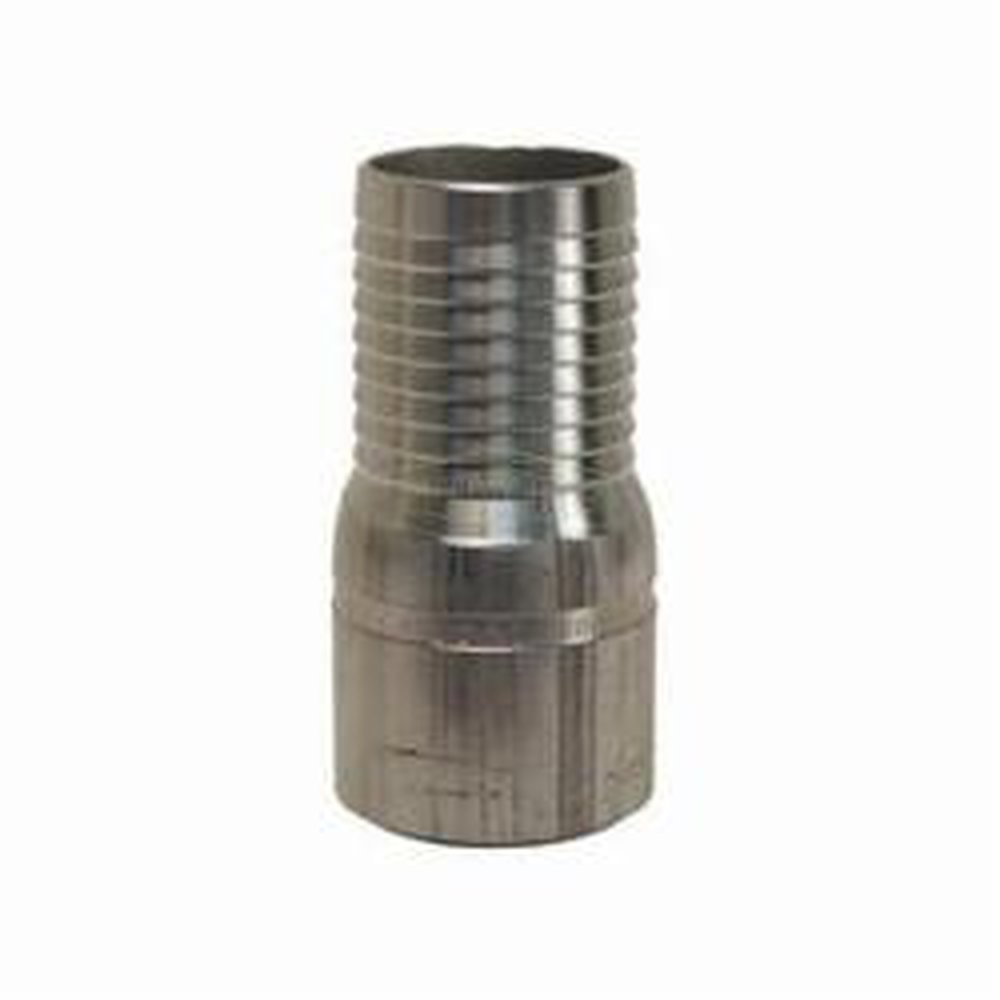

RSTB25 2 T316 SS BEVELED END COMINATION NIPPLE

Mouse over image to zoom, click to enlarge

Description: Dixon® Combination Nipple, Series: King™, 2 in Nominal Size, Beveled End, 4-11/16 in Length, 316 Stainless Steel, 60.3 mm OD, Domestic

Manufacturer PN: RSTB25

UPC:  69746411318

Forberg Smith PN: 3065858

Invoice Description:

RSTB25 2 T316 SS BEVELED END COMINATION NIPPLE

UNSPSC: 40141734


SPEC SHEET

How Can We Make This Page Better?

Dixon® RSTB25 King™ Combination Nipple, 2 in, Beveled, 316 Stainless Steel, Domestic

Price:  $42.39 / ea

Note: Lead times are estimates only


Availability: 1-2 weeks


Quantity  ea Add to Cart

Description

Dixon® Combination Nipple, Series: King™, 2 in Nominal Size, Beveled End, 4-11/16 in Length, 316 Stainless Steel, 60.3 mm OD, Domestic

Specifications

 Application For low-pressure discharge and suction service for compatible liquids
 Brand Name Dixon®
 Dimensions 60.3 mm OD
 Domestic or Import Domestic
 End Style Beveled
 Length 4/11/2016 in
 Manufacturer Part Number RSTB25
 Material 316 Stainless Steel
 Nominal Size 2 in
 Series King™

Features

▪ King combination nipples are not recommended for steam
▪ The working pressure may vary with the construction of the hose, the type of clamping system used and the application
▪ In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement
▪ Not for compressible products such as air or nitrogen
▪ Wash hands after handling

Resources

 Catalog
 Catalog Page
 Product Data Sheet
