ASCO

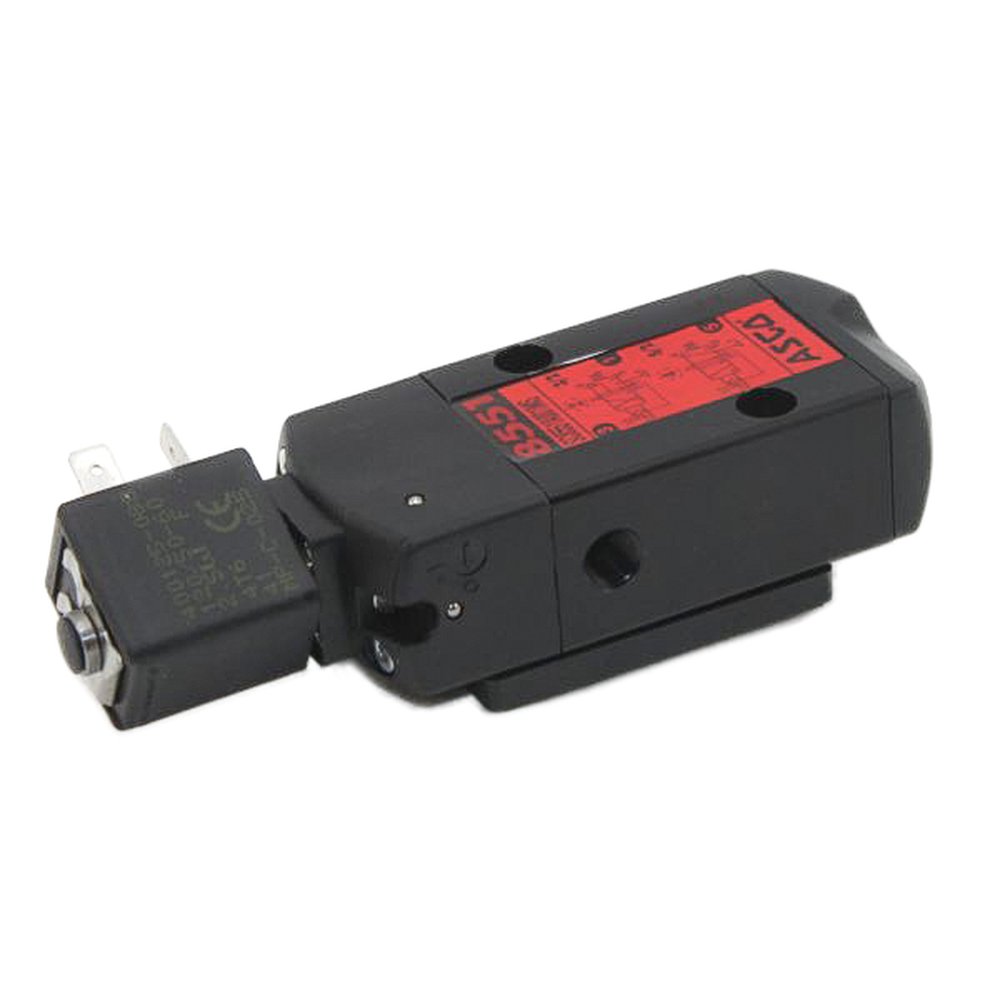

SC8551A1MS NAMUR MOUNT 120/60 150PSI AIR MIN30 ASCO VALVE W/DIN COIL

Mouse over image to zoom, click to enlarge

Description: ASCO Series 8551 Solenoid Valve for Namur Actuator Mount Applications. See Catalog Datasheet for more information.

Manufacturer PN: 21595

Forberg Smith PN: 3049025

Invoice Description:

SC8551A1MS NAMUR MOUNT 120/60 150PSI AIR MIN30 ASCO VALVE W/DIN COIL

UNSPSC: 40141600


SPEC SHEET

▸ See All in ASCO Solenoid Valves


How Can We Make This Page Better?

ASCO SC8551A001MS 120/50-60AC 4-Way Aluminum 1/4 In Solenoid Valve, Namur Mount

Price:  $198.00 / ea


Availability: 42 ea  i


Quantity  ea Add to Cart

Description

ASCO Series 8551 Solenoid Valve for Namur Actuator Mount Applications. See Catalog Datasheet for more information.

Specifications

 Ambient Temperature Range 5 to 140°F
 Body Design 4-Way
 Body Material Aluminum
 Brand Name ASCO
 Category Solenoids
 Coil Order Code 400125-088-*
 Coil Watt Rating 2.5
 Connection Female NPT Threaded
 Construction Single Solenoid - Pilot Operated
 Cv Flow Factor 0.86
 Electrical Connection DIN
 Manufacturer ASCO
 Max Fluid Temperature 140°F
 Max ODP Air 150 PSI
 Minimum OPD 30 PSI
 Seal Material NBR
 Series 8551
 Size 1/4 in
 Solenoid Enclosure Open Frame
 Type Solenoid Valve
 Voltage 120/50-60 AC

Resources

 Product Data Sheet
