Dixon Valve & Coupling

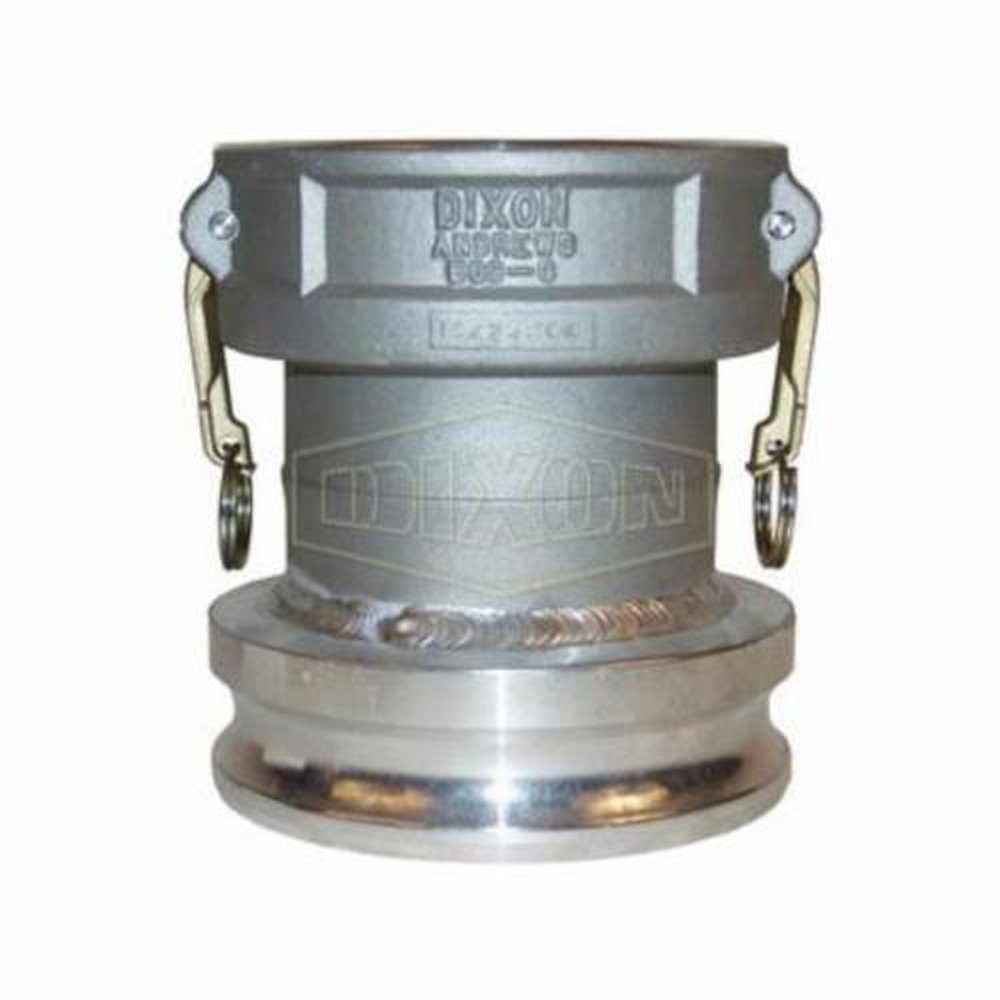

1015-DA-AL DIXON 1X1-1/2 CPLR/ADPT

Mouse over image to zoom, click to enlarge

Description: Dixon® Cam and Groove Reducing Coupler, Type DA, Reducing Coupling Fitting/Connector, 1-1/2 x 1 in Nominal, Coupler x Adapter End Style, 250 psi Pressure, Aluminum, Domestic

Manufacturer PN: 1015-DA-AL

UPC:  69746406710

Forberg Smith PN: 4444358

Invoice Description:

1015-DA-AL DIXON 1X1-1/2 CPLR/ADPT

UNSPSC: 40141734


SPEC SHEET

How Can We Make This Page Better?

Dixon® 1015-DA-AL Type DA Cam and Groove Reducing Coupler, 1-1/2 x 1 in Nominal, Coupler x Adapter End Style, Aluminum, Domestic

Price:  $147.19 / ea

Note: Lead times are estimates only


Availability: 1-2 weeks


Quantity  ea Add to Cart

Description

Dixon® Cam and Groove Reducing Coupler, Type DA, Reducing Coupling Fitting/Connector, 1-1/2 x 1 in Nominal, Coupler x Adapter End Style, 250 psi Pressure, Aluminum, Domestic

Specifications

 Application Designed for use with liquids
 Brand Name Dixon®
 Domestic or Import Domestic
 End Style Coupler x Adapter
 Fitting Type Reducing Coupling
 Manufacturer Part Number 1015-DA-AL
 Material Aluminum
 Nominal Size 1-1/2 x 1 in
 Pressure Rating 250 psi
 Type Type DA
 Video Links

Features

▪ Buna-N gasket
▪ Produced to interchange with all product produced to commercial item description A-A-59326D
▪ Produced as a welded fabrication construction
▪ In reducing couplings, the coupler is the first size in the part number
▪ Under no circumstances should cam and groove couplings be used for compressed air or steam service!
▪ Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
▪ Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
▪ Do not use in connection with drinking water
▪ Wash hands after handling
