Dixon Valve & Coupling

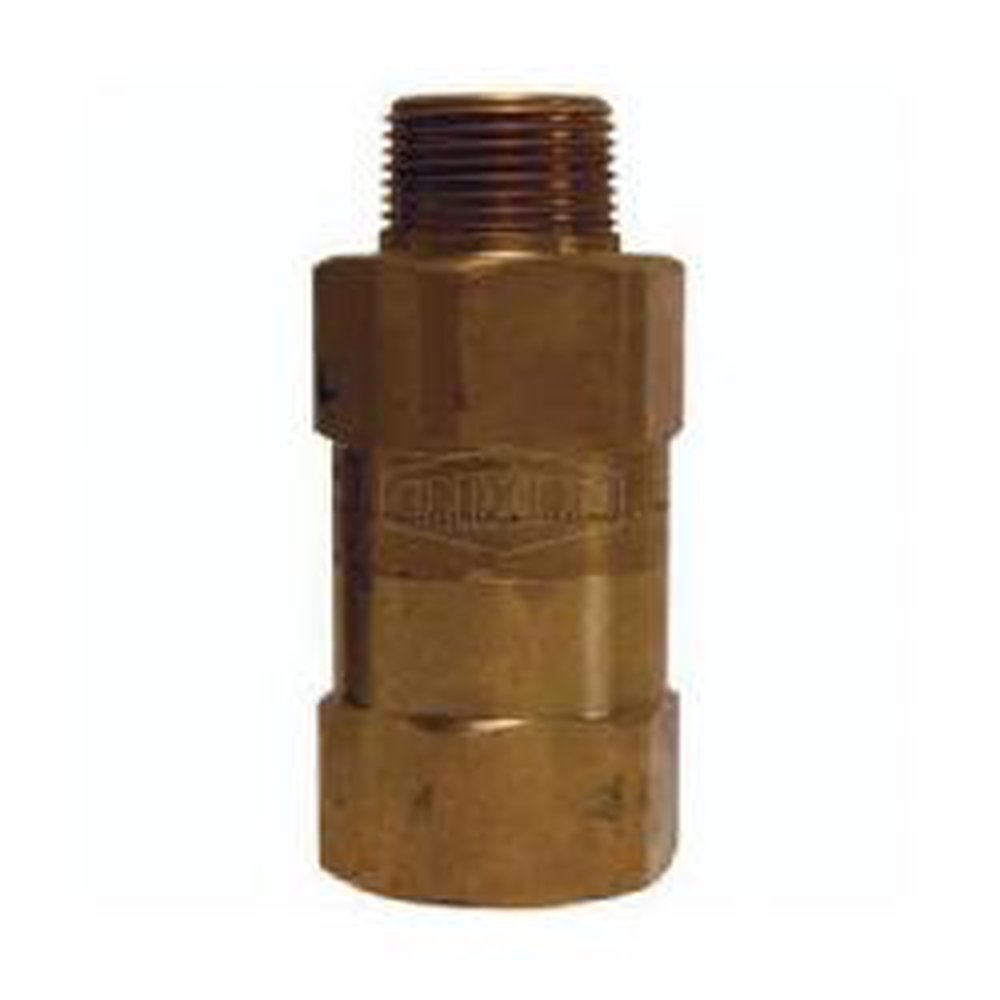

SCVS4 DIXON 1/2 SAFETY CHECK VLV

Mouse over image to zoom, click to enlarge

  • SCVS4 DIXON 1/2 SAFETY CHECK VLV
  • SCVS4 DIXON 1/2 SAFETY CHECK VLV
  • SCVS4 DIXON 1/2 SAFETY CHECK VLV

Description: Dixon® Safety Check Valve, 1/2 in Nominal, MNPT, 350 psi, 250 deg F, 80 to 96 scfm, Brass Body, 2-29/32 in L

Manufacturer PN: SCVS4

UPC:  69746436686

Forberg Smith PN: 3909253

Invoice Description:

SCVS4 DIXON 1/2 SAFETY CHECK VLV

UNSPSC: 40141600


SPEC SHEET

How Can We Make This Page Better?

Dixon® SCVS4 Safety Check Valve, 1/2 in, MNPT, Brass Body

Price:  $60.89 / ea

Note: Lead times are estimates only


Availability: 1-2 weeks


Quantity  ea Add to Cart

Description

Dixon® Safety Check Valve, 1/2 in Nominal, MNPT, 350 psi, 250 deg F, 80 to 96 scfm, Brass Body, 2-29/32 in L

Specifications

 Body Material Brass
 Brand Name Dixon®
 Dimensions 2-29/32 in L
 End Style MNPT
 Flow Rate 80 to 96 scfm
 Manufacturer Part Number SCVS4
 Nominal Size 2-Jan in
 Pressure Rating 350 psi
 Standards/Approvals OSHA 1926.302
 Temperature Rating 250 deg F

Features

▪ Wash hands after handling
▪ 80 to 96 scfm at 90 psi
▪ High flow valve to provide optimum performance
▪ Controls excess air flow (scfm) in only one direction
▪ Automatically senses change in air flow and shuts off the flow in the event of a surge in excess of valve flow rating thus preventing hose whip
▪ Solid brass body and valve
▪ Stainless steel spring and roll pin
▪ Conforms to OSHA regulation 1926.302 (B) (7) requiring a safety device at the source of the air supply and at branch air lines
▪ Does not prevent backflow
▪ Prop65: This product contains a chemical known to the state of California to cause birth defects or other reproductive harm
▪ Do not use in connection with drinking water

Resources

 Catalog
 Catalog Page
 Product Data Sheet
