Dixon Valve & Coupling

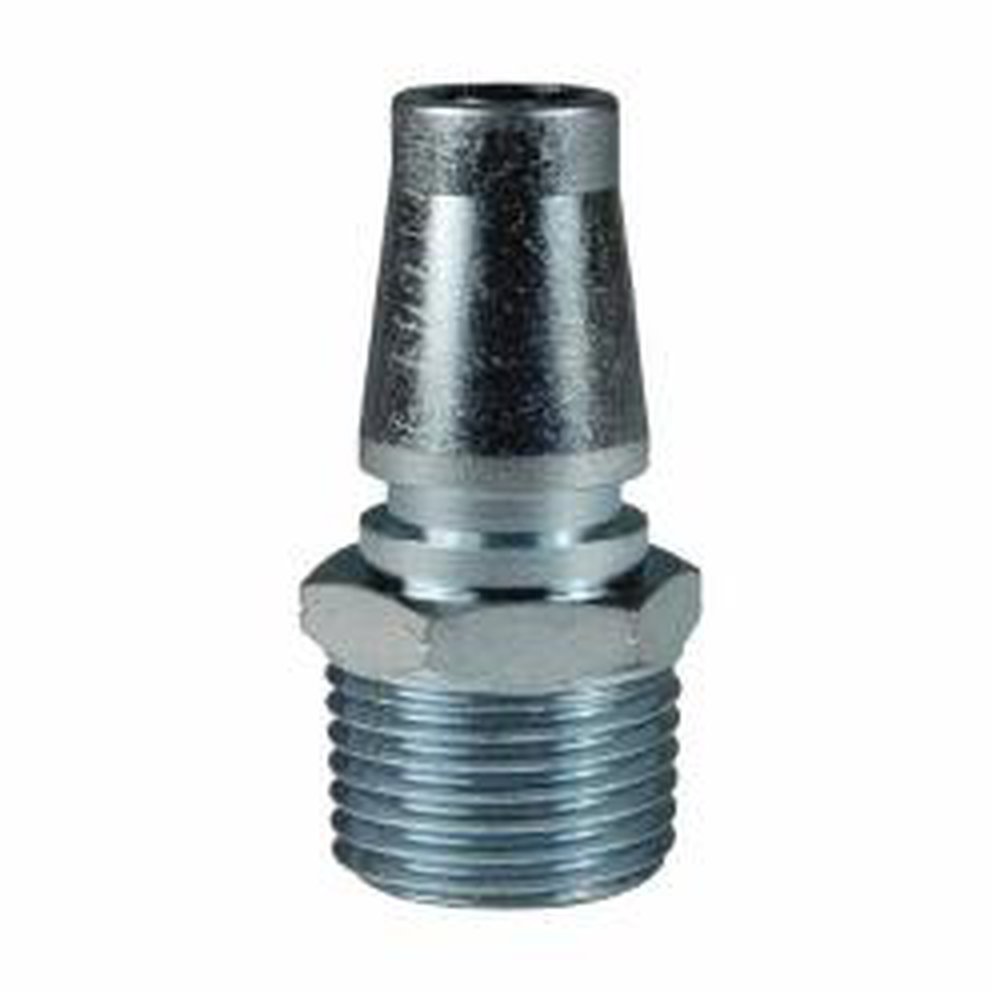

SHD2M2 DIXON 1/4 STL NIPPLE

Mouse over image to zoom, click to enlarge

Description: Dixon® Twist-Lock Plug, Interchange Schrader, Series: SHD, 1/4-18 x 1/4 in Nominal, MNPT End Style, 11/16 in Hex, 1.72 in Length, 500 psi Pressure, -40 to 250 deg F, Steel, Polished Chrome

Manufacturer PN: SHD2M2

UPC:  69746447078

Forberg Smith PN: 4072773

Invoice Description:

SHD2M2 DIXON 1/4 STL NIPPLE

UNSPSC: 39120000


SPEC SHEET

How Can We Make This Page Better?

Dixon® SHD2M2 SHD Interchange Schrader Twist-Lock Plug, 1/4-18 x 1/4 in Nominal, MNPT, 500 psi Pressure, Steel

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Twist-Lock Plug, Interchange Schrader, Series: SHD, 1/4-18 x 1/4 in Nominal, MNPT End Style, 11/16 in Hex, 1.72 in Length, 500 psi Pressure, -40 to 250 deg F, Steel, Polished Chrome

Specifications

 Brand Name Dixon®
 End Style MNPT
 Finish Polished Chrome
 Hex Size 11/16 in
 Length 1.72 in
 Manufacturer Part Number SHD2M2
 Material Steel
 Nominal Size 1/4-18 x 1/4 in
 PART NUMBER KEYWORDS SHD2M2
 Pressure Rating 500 psi
 Series SHD
 Standards/Approvals RoHS Compliant
 Temperature Rating -40 to 250 deg F
 Type Interchange Schrader

Features

▪ Machined components are manufactured using solid bar stock
▪ Schrader twist-lock interchange
▪ Parker twist-lock, Tomco series-TL, Foster SHD

Resources

 Catalog Page
