Dixon Valve & Coupling
SV125HD DIXON 1/2 ML H/D SFTY P-OFF

Mouse over image to zoom, click to enlarge

Description: Dixon® Safety Pop-Off Valve, Heavy Duty, 1/2 in Nominal, MNPT, 400 deg F Temperature, 254 scfm, Brass Body

Manufacturer PN: SV125HD

UPC:  69746408814

Forberg Smith PN: 3991622

Invoice Description:

SV125HD DIXON 1/2 ML H/D SFTY P-OFF

UNSPSC: 40141604


SPEC SHEET

How Can We Make This Page Better?

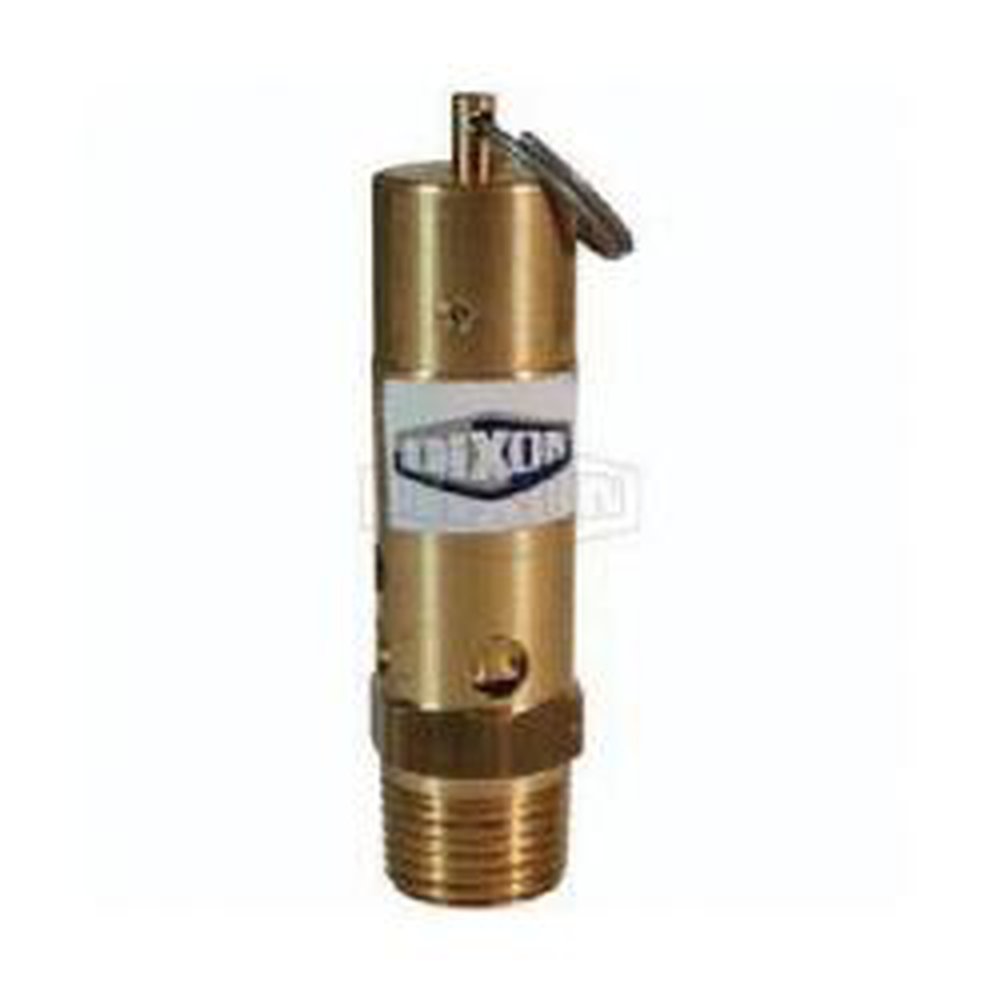

Dixon® SV125HD Heavy Duty Safety Pop-Off Valve, 1/2 in, MNPT, 254 scfm, Brass Body

Price:  $37.13 / ea

Note: Lead times are estimates only


Availability: 1-2 weeks


Quantity  ea Add to Cart

Description

Dixon® Safety Pop-Off Valve, Heavy Duty, 1/2 in Nominal, MNPT, 400 deg F Temperature, 254 scfm, Brass Body

Specifications

 Application Designed to protect un-fired pressure vessels from over-pressure. Designed for compressors and compressed air service
 Body Material Brass
 Brand Name Dixon®
 Domestic or Import Domestic
 End Style MNPT
 Flow Rate 254 scfm
 Manufacturer Part Number SV125HD
 Nominal Size 1/2 in
 Standards/Approvals ASME Specified|CSA B51-03
 Temperature Rating 400 deg F
 Type Heavy Duty

Features

▪ All brass construction with stainless steel ball on a precision machined brass seat
▪ High capacity
▪ 125 psi pressure setting
▪ Pressure rating given at ambient temperature 70 deg F
▪ Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
▪ Do not use in connection with drinking water
▪ Wash hands after handling
