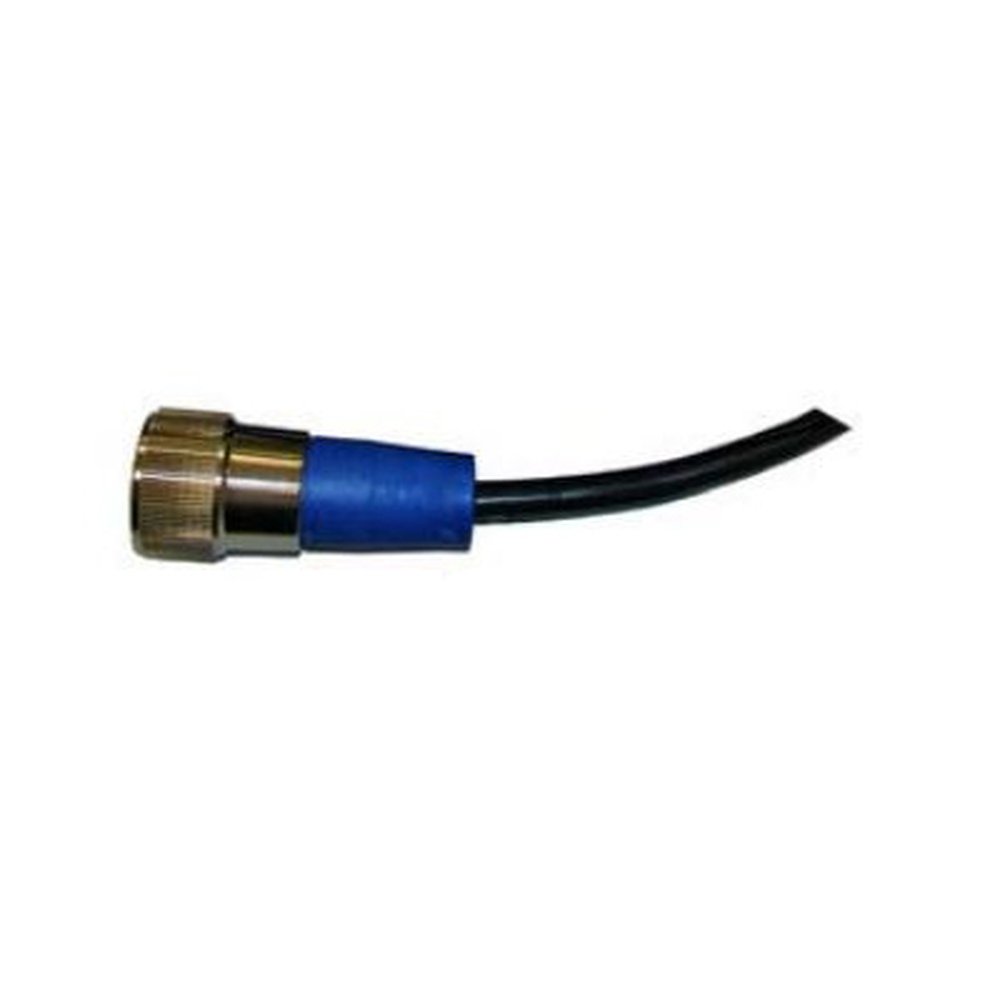

UV1A3 FIREYE UV FLAME SCANNER 1/2 NPT 3 FT FLEX CONDUIT

Mouse over image to zoom, click to enlarge

Description: Fireye® UV Flame Scanner, Non Self-Checking, For Use With: M-Series II, MicroM™, FlameWorx, MB-2 and D-Series Controls, FLAME-MONITOR™, BurnerLogix and Nexus System, 1/2 in NPT Connector, 560 V AC at 120 V AC (230 V AC) 50/60 Hz, -40 to 200 deg F Operating, 85% RH Max Non-Condensing, 1.06 in OD x 2.53 in L, Domestic

Manufacturer PN: UV1A3

Forberg Smith PN: 3031952

Invoice Description:

UV1A3 FIREYE UV FLAME SCANNER 1/2 NPT 3 FT FLEX CONDUIT

UNSPSC: 41112200


SPEC SHEET

How Can We Make This Page Better?

Fireye® UV1A3 Non Self-Checking UV Flame Scanner With 36 in Exposed Run Tray (TC-ER) Cable, For Use With M-Series II, MicroM™, FlameWorx, MB-2 and D-Series Controls, FLAME-MONITOR™, BurnerLogix and Nexus System, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The UV1A3/6, UV2/UV2A6, 45UV3, UV90-3/6/9 Scanners are used with the M-Series, M-Series II, MicroM™, FlameWorx, MB-2 and D-Series controls as well as the Fireye® FLAME-MONITOR™, BurnerLogix and Nexus System. The UV1A3/6 scanners come with 3 ft and 6 ft cables rated for Tray Cable - Exposed Run (TC-ER) and complies with the crush and impact requirements of the standard for metal clad cable, UL 1569. The UV2 (36 inch) and UV2A6 (72 inch) are fitted with a 3/8 in NPT female to 1/2 in NPT male adapter fitted into the 1/2 in threaded coupling of the UV1A3/6 respectively. The UV90-3/6/9 is available with 3 ft, 6 ft and 9 ft shielded flexible cables.
Fireye® UV Flame Scanner, Non Self-Checking, For Use With: M-Series II, MicroM™, FlameWorx, MB-2 and D-Series Controls, FLAME-MONITOR™, BurnerLogix and Nexus System, 1/2 in NPT Connector, 560 V AC at 120 V AC (230 V AC) 50/60 Hz, -40 to 200 deg F Operating, 85% RH Max Non-Condensing, 1.06 in OD x 2.53 in L, Domestic

Specifications

 Application For Detecting Flames from Standard Fuel Gases, Some Waste Gases and Light Oil Fuels
 Brand Name Fireye®
 Dimensions 1.06 in OD x 2.53 in L
 Domestic or Import Domestic
 Manufacturer Part Number UV1A3
 PART NUMBER KEYWORDS UV1A3
 Specifications 1/2 in NPT Connector, 560 V AC at 120 V AC (230 V AC) 50/60 Hz, -40 to 200 deg F Operating, 85% RH Max Non-Condensing
 Standards/Approvals cULus Listed|FM Approved
 Suitable For Use With M-Series II, MicroM™, FlameWorx, MB-2 and D-Series Controls, FLAME-MONITOR™, BurnerLogix and Nexus System
 Type Non Self-Checking

Features

▪ Use with EUV1 amplifier
▪ Shielded leads
▪ Comply with NEMA 4X
