Dwyer Instruments

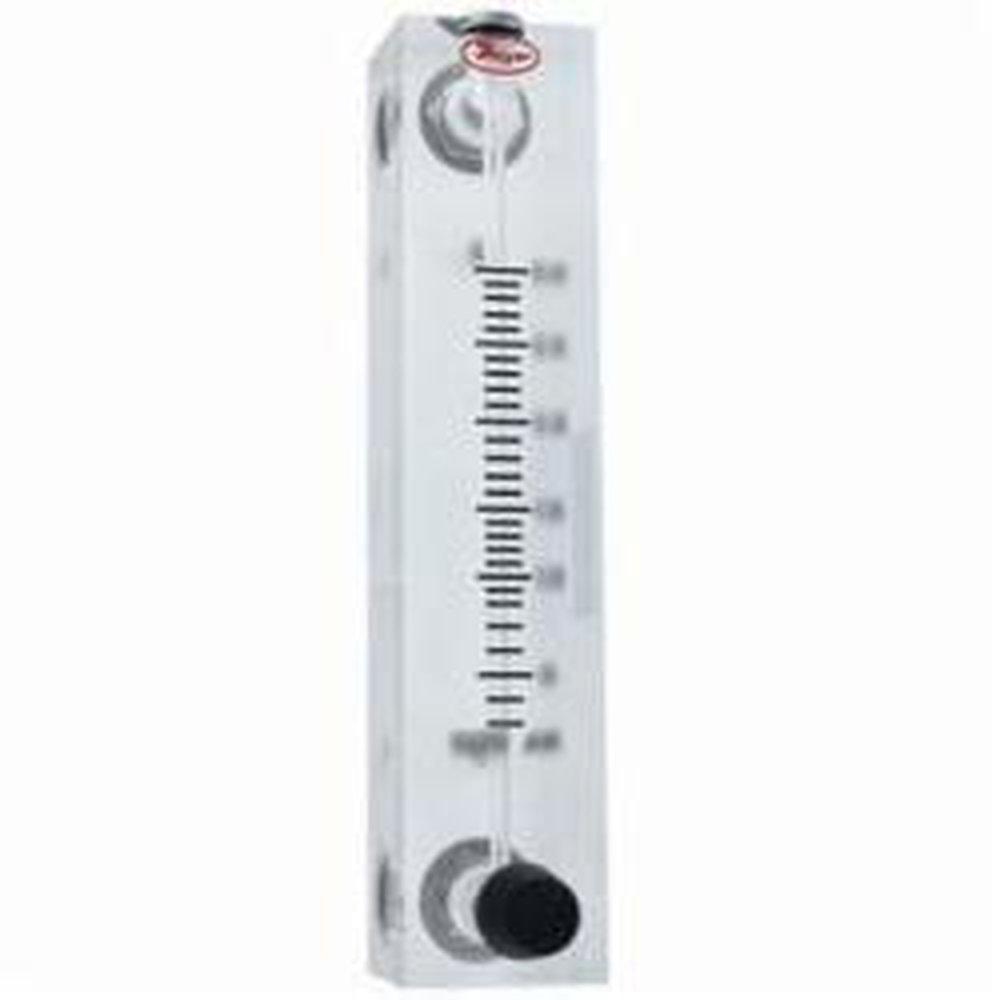

VFB-66-SSV DWYER FLOWMETER, RANGE 1-10 LPM AIR WITH STAINLESS STEEL VALVE

Mouse over image to zoom, click to enlarge

Description: Dwyer® Flowmeter, Series: Visi-Float®, 1 to 10 lpm, 100 psi, 1/8 in FPT, 3% of Full Scale Accuracy, Mid-Range Calibration, Direct Reading Scale Display, 150 deg F, Acrylic Plastic, 6-11/16 in H x 1-3/8 in W x 1-1/4 in D

Manufacturer PN: VFB-66-SSV

Forberg Smith PN: 3654306

Invoice Description:

VFB-66-SSV DWYER FLOWMETER, RANGE 1-10 LPM AIR WITH STAINLESS STEEL VALVE


How Can We Make This Page Better?

Dwyer® VFB-66-SSV Visi-Float® Flowmeter With Stainless Steel Valve, 1 to 10 lpm, 100 psi, 1/8 in FPT, 3% of Full Scale

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The series VF Visi-Float® flow meter bodies are cut and precision machined from solid, clear acrylic plastic blocks. This construction not only produces a handsome finished product, but permits complete visual inspection. As a result, the Visi-Float® flowmeters are especially popular for medical and laboratory equipment applications.
Dwyer® Flowmeter, Series: Visi-Float®, 1 to 10 lpm, 100 psi, 1/8 in FPT, 3% of Full Scale Accuracy, Mid-Range Calibration, Direct Reading Scale Display, 150 deg F, Acrylic Plastic, 6-11/16 in H x 1-3/8 in W x 1-1/4 in D

Specifications

 Accuracy 3% of Full Scale
 Application Medical Equipment, Laboratory Equipment, Air Samplers, Gas Analyzers, Pollution Monitors, Chemical Injectors and Cabinet Purging
 Brand Name Dwyer
 Calibration Mid-Range
 Connection Size 1/8 in FPT
 Dimensions 6-11/16 in H x 1-3/8 in W x 1-1/4 in D
 Flow Rate 1 to 10 lpm
 Manufacturer Part Number VFB-66-SSV
 Material Acrylic Plastic
 PART NUMBER KEYWORDS VFB-66-SSV ; VFB66SSV
 Pressure Rating 100 psi psi
 Series Visi-Float®
 Standards/Approvals RoHS 2011/65/EU
 Temperature Rating 150 deg F deg F
 Video Links

Features

▪ Stainless steel, black glass, aluminum, k monel float depending on range
▪ Multi-angle views of flow
▪ 4 in scale length
▪ The front scale location and white background provides excellent visibility
▪ The direct reading scales are hot stamped into the plastic and will not wear off
▪ Mid range calibration is established with a master flowmeter
▪ Have metal mounting inserts on rear for panel mounting
▪ They can also be supported directly by system piping
▪ Used to indicate or manually control air or water flow
▪ Wetted materials O-ring, Buna-N® (fluoroelastomer available)
▪ Mount in vertical position
▪ It has metal mounting inserts on rear for panel mounting
