Neles Corporation

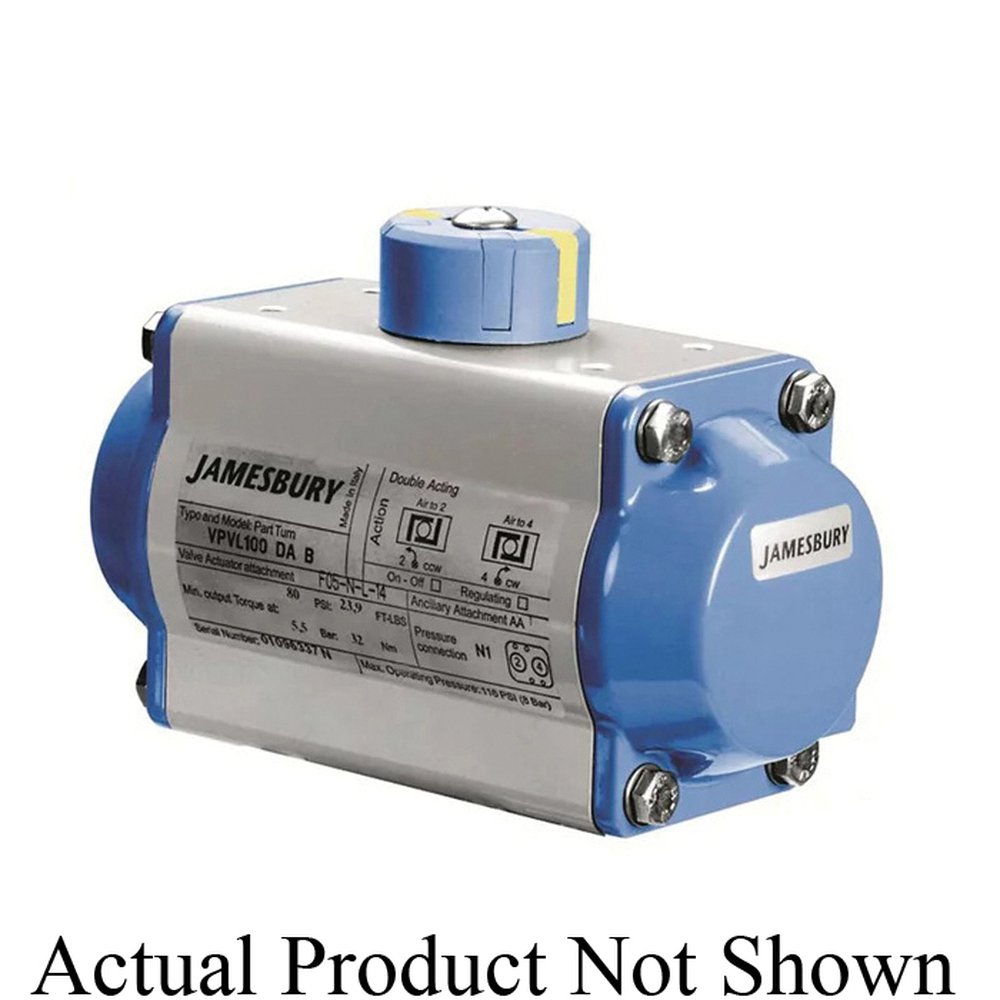

VPVL700SR4/5BD ACT SP RET

Mouse over image to zoom, click to enlarge

Description: Jamesbury™ Valv-Powr™ Piston Actuator, Model D Spring Return Standard, Series: VPVL, 700 Actuator, 10.43 in Bore, 885 cu-in Opening Stroke, 982 N-m Output Torque, 6.9 W AC/6.3 W DC Power Consumption, 4.5 s Opening/5 s Closing Timing, 110/120 V AC at 50/60 Hz Supply, 14.1 cfm Flow Rate, 60 psi Pressure, -40 to 176 deg F, Direct Mounting, Aluminum Body, Alloy Steel Spring Trim, Nitrile Rubber Softgoods, Black Anodized PTFE Coated

Manufacturer PN: MA0126236

Forberg Smith PN: 3054999

Invoice Description:

VPVL700SR4/5BD ACT SP RET


SPEC SHEET

How Can We Make This Page Better?

Jamesbury™ Valv-Powr™ MA0126236 VPVL Model D Spring Return Standard Piston Actuator, 700 Actuator, 10.43 in Bore, 885 cu-in Opening Stroke, 982 N-m Output, Aluminum Body

Log In for Pricing and Availability




Description

The Jamesbury™ Valv-Powr™ VPVL double opposed piston actuators combine the benefits of high cycle life, a rugged construction and an extremely compact and symmetrical design with a unique range of features and options. They are specifically designed for fast efficient operation of ball, butterfly and other rotary type valves.
Jamesbury™ Valv-Powr™ Piston Actuator, Model D Spring Return Standard, Series: VPVL, 700 Actuator, 10.43 in Bore, 885 cu-in Opening Stroke, 982 N-m Output Torque, 6.9 W AC/6.3 W DC Power Consumption, 4.5 s Opening/5 s Closing Timing, 110/120 V AC at 50/60 Hz Supply, 14.1 cfm Flow Rate, 60 psi Pressure, -40 to 176 deg F, Direct Mounting, Aluminum Body, Alloy Steel Spring Trim, Nitrile Rubber Softgoods, Black Anodized PTFE Coated

Specifications

 Application Food Industry, Marine, Pharmaceutical, Off-Shore and Sanitary
 Body Material Aluminum
 Bore Size 10.43 in
 Brand Name Jamesbury™
 Finish Black Anodized PTFE Coated
 Flow Rate 14.1 cfm
 Manufacturer Part Number MA0126236
 Mounting Type Direct
 Output Torque 982 N-m
 PART NUMBER KEYWORDS MA0126236 ; VPVL700SR4/5BD ; VPVL700SR45BD
 Power Consumption 6.9 W AC/6.3 W DC
 Pressure Rating 60 psi
 Series VPVL
 Softgoods Material Nitrile Rubber
 Standards/Approvals ASTM A105|ASTM A193|ASTM B221|ATEX 2014/34/EU Directive|EN 10088-3
 Stroke 885 cu-in Opening
 Temperature Rating -40 to 176 deg F
 Timing 4.5 s Opening/5 s Closing
 Trim Material Alloy Steel Spring
 Type Model D Spring Return Standard

Features

▪ Safe and reliable
▪ Spring-to-close (CW rotation)
▪ Nitrile rubber O-ring material
▪ Modular design utilizing same body and end caps for both double acting and spring return versions
▪ Compact and lightweight
▪ High cycle life with low friction bearings on all moving and sliding surfaces
▪ ISO 5211 mounting pattern
▪ Machined gear teeth provide longest life and smoother operation
▪ Safety contained springs prevent hazards of inadvertent ejection during maintenance
▪ Corrosion-resistant with PTFE coated body, polyester coated end caps and stainless steel fasteners
▪ Adjustable stops for both open and closed positions
▪ Versatile, modular design
