Dixon Valve & Coupling

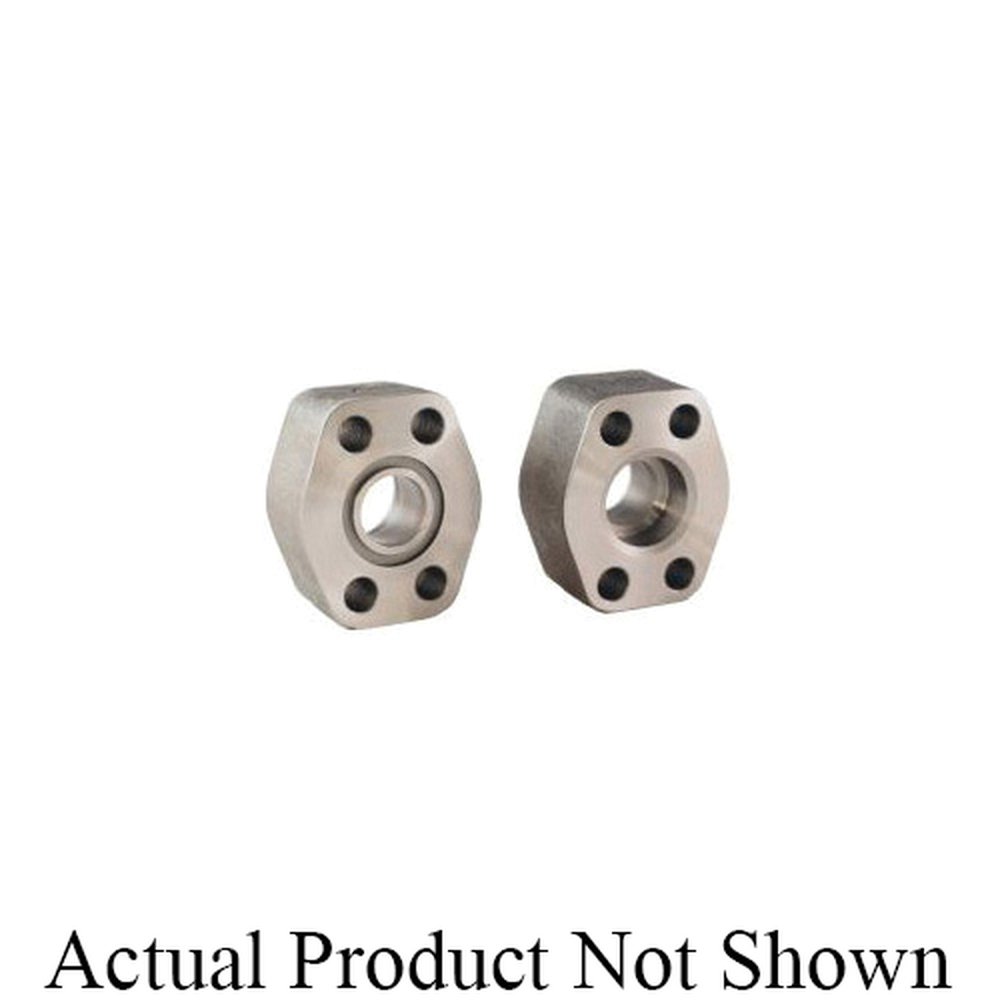

W4-12-12-U 3/4 CODE 61 FS SW O-RING FLG W/MTG BOLTS & O-RING

Mouse over image to zoom, click to enlarge

Description: Dixon® Hydraulic Socket Weld Flange, 3/4 in Nominal, 4 Bolt Holes, 5000 psi, Carbon Steel, Domestic

Manufacturer PN: W4-12-12-U

UPC:  69746412893

Forberg Smith PN: 4186630

Invoice Description:

W4-12-12-U 3/4 CODE 61 FS SW O-RING FLG W/MTG BOLTS & O-RING


How Can We Make This Page Better?

Dixon® W4-12-12-U Hydraulic Socket Weld Flange, 3/4 in, Carbon Steel, Domestic

Log In for Pricing and Availability




Description

Dixon® Hydraulic Socket Weld Flange, 3/4 in Nominal, 4 Bolt Holes, 5000 psi, Carbon Steel, Domestic

Specifications

 Application For hydraulic systems make installation of components easier, especially in applications with limited space
 Brand Name Dixon®
 Domestic or Import Domestic
 Includes Bolt Kit with Buna O-Ring
 Manufacturer Part Number W4-12-12-U
 Material Carbon Steel
 Nominal Size 3/4 in
 Number of Bolt Holes 4
 PART NUMBER KEYWORDS W4-12-12-U ; W41212U
 Pressure Rating 5000 psi
 Standards/Approvals SAE J518-1

Features

▪ Standard pressure
▪ Flanges are constructed with an O-ring seal to eliminate leakage
▪ 3/4 in pad
▪ 44 lb-ft grade 8 UNC torque
