Dixon Valve & Coupling

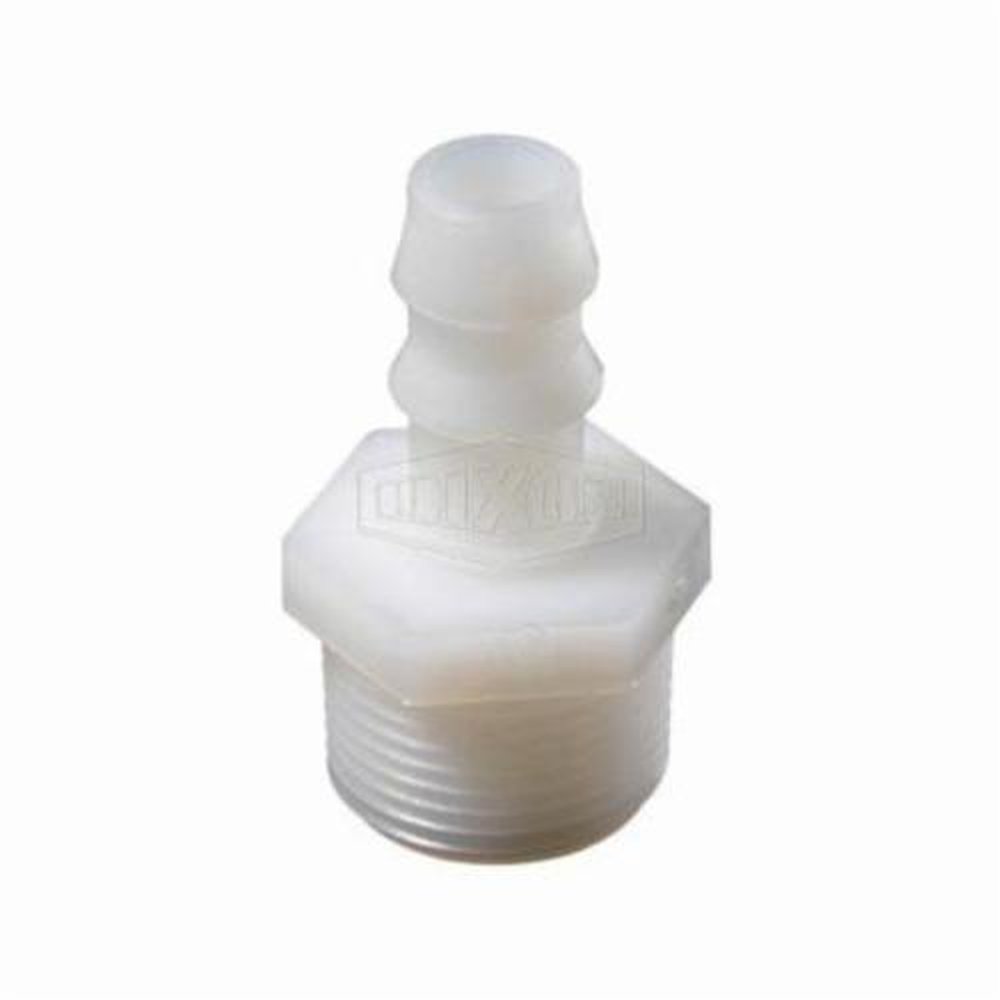

TPN46 DIXON 1/2X3/4NPT MALE INSERT

Mouse over image to zoom, click to enlarge

Description: Dixon® Push-On Insert, Series: Tuff-Lite™, Fitting/Connector Type: Adapter, 3/4 x 1/2 in Nominal, MNPT x Hose Shank End Style, 5/8 in Hex, 2-1/16 in Length, Nylon, White, Domestic

Manufacturer PN: TPN46

UPC:  69746403578

Forberg Smith PN: 4636629

Invoice Description:

TPN46 DIXON 1/2X3/4NPT MALE INSERT


SPEC SHEET

How Can We Make This Page Better?

Dixon® TPN46 Tuff-Lite™ Push-On Insert, 3/4 x 1/2 in Nominal, MNPT x Hose Shank, Nylon, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Push-On Insert, Series: Tuff-Lite™, Fitting/Connector Type: Adapter, 3/4 x 1/2 in Nominal, MNPT x Hose Shank End Style, 5/8 in Hex, 2-1/16 in Length, Nylon, White, Domestic

Specifications

 Brand Name Dixon®
 Color White
 Domestic or Import Domestic
 End Style MNPT x Hose Shank
 Fitting Type Adapter
 Hex Size 5/8 in
 Length 2-1/16 in
 Manufacturer Part Number TPN46
 Material Nylon
 Nominal Size 3/4 x 1/2 in
 PART NUMBER KEYWORDS TPN46
 Series Tuff-Lite™
 Standards/Approvals PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Features

▪ No clamps are needed when these fittings are used with push-on hose
▪ Nylon should not be used with compressed gas
▪ Nylon fittings should not be used with acid based fertilizers, bromine, chlorine, fluorine, hydrochloric acid, iodine, nitric acid, phosphoric acid, sulfuric acids or xylene
